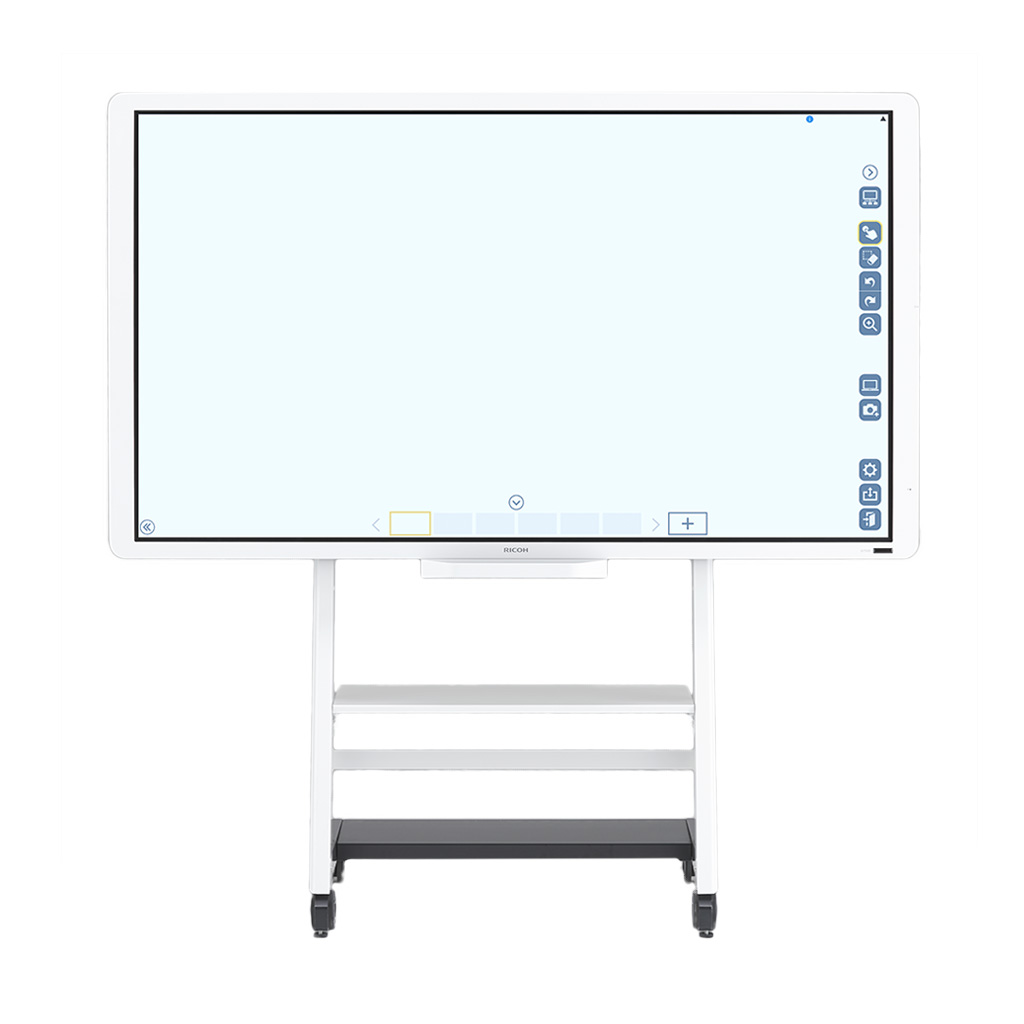

IWB D7500 Interactive whiteboard

  • 75-inch touchscreen
  • 3,840 x 2,160 pixels
  • 410 cd/m2 brightness
  • Optional remote connection

Improve alignment across departments and offices with collaboration tools that connects, simply

Share information easily, from your laptop to smartphone to Ricoh’s Interactive Whiteboard. It’s the one device that provides a single point for decision making.

The versatility of this whiteboard offers choice and simplicity for a happy, cooperative office. Operate networked computers from the whiteboard or display content from a USB. Choose from display styles, whether you want the portability of wheels to move around the office, hang on a meeting room wall or use as desktop. Working across multiple locations is simplified with real-time sharing, with no software needed. Add on Ricoh Streamline NX to limit access and keep information secure.

  1. Real time collaboration
    Edit and mark documents directly on the whiteboard. Multiple devices can connect for support across locations.
  2. Innovative handwriting recognition
    Write, scribble or draw with the electronic pen, using the whiteboards OCR recognition.
  3. Easy to use
    Designed for easy use and interactivity with touchscreen convenience.
  4. Share results easily
    Share results by producing PDFs that can be sent to email, USB or directly to office folders, network or on the cloud.

Specifications

Operation panel
1 x main switch
7 x tact switch
What's included

Touch pen
1 pcs

Note: There is also a felt-tipped touch pen available as an option, if additional pens are required.

Remote controller
Yes

Remote controller battery
2 x AAA batteries

Power cord
Yes

RGB cable
Yes

USB cable
Yes—for PC operation

HDMI cable
Yes

Bluetooth dongle
Yes

Quick guide and safety instructions
Yes

OPS slot
Yes x 1

Physical dimensions (WxDxH)—mainframe
1,783 × 198 × 1,055 mm
Weight—mainframe
90 kg
Panel type
LCD multi touch-screen display
Panel size
75 inches
Backlight
LED
Effective display area (W X H)
1,649.664 x 927.936 mm
Resolution
3,840 x 2,160 pixels (4K Ultra HD)
Colour reproduction
1.07 billion colours maximum
Colour temperature
11,000 K—cool
6,500 K—warm
9,300 K—neutral
5,000 K—low blue light
Brightness
410 cd/m2
Aspect ratio
16:9
Contrast
1200:1
Display settings

Landscape orientation, Picture Mode—including Low Blue Light Mode, Backlight, Contrast, Brightness, Chroma, Phase, Sharpness, Colour temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio Source PAP Setting, Aspect, Adjust screen, Touch feature, Language, Power Save Control Setting, Touch control settings, Set monitor ID, Advanced information

Pixel pitch
0.429 mm
Response speed
8 ms
Viewing angle (H/V)
Left and right 178 degrees, up and down 178 degrees
Audio

Input
1 x Line 3.5 mm

Output
1 x speaker out

Video

Video input
1 x VGA
1 x HDMI
1 x DVI-D
1 x DisplayPort

Video output
1 x DisplayPort

Microphone

Configuration
Built-in

Mic sensitivity
-28±3 dB

Signal to noise ratio
58 dB

Maximum input level
110 dB

Maximum pickup distance
5 m

Touch technology
ShadowSense
Touch points
10 points maximum—four points with finger
Touch resolution
80 pt/sec—1,920 x 1,080 spatial resolution
Touch output
USB 2.0 Type B—not available when controller is installed
Detection system electronic pen
Radio frequency transmission
Touch panel cover glass
4 mm anti-glare
Interfaces - standard

Control
1 x serial RS-232C input
1 x serial RS-232C output
2 x USB 2.0 Type B—for touch control

USB Hub 1
2 x USB 2.0 Type A—for Bluetooth dongle

USB Hub 2
4 x USB 3.0 Type A

Bluetooth
Bluetooth v2.1+EDR v3.0, v4.0

Open Pluggable Specification (OPS) controller slot
1 slot with detachable cover

Interfaces - optional
With Ricoh IWB controllers
10Base-T/100Base-Tx/1000Base-T (Wired LAN)
IEEE 802.11a/b/g/n (Wireless LAN)

Remote connection
Allows real-time sharing of content and drawings.
Remote connection is available in the same network (intranet) and VPN environments.
Windows

Multi-touch sensor
Windows 7—Ultimate, Professional, Home Premium
Windows Embedded 7—Standard
Windows 8—Windows 8, Pro, Enterprise
Windows Embedded 8—Standard
Windows 8.1—Windows 8.1, Pro, Enterprise
Windows 10—Home, Pro, Enterprise, IoT

Single-touch sensor
Windows 7—Home Basic

RICOH Interactive Whiteboard controller Type 1 (optional)
Windows Embedded Standard 8

RICOH OS-free Interactive Whiteboard controller Type 1 (optional)
Windows 7—must be installed after setup at customer site

Macintosh
Mac OS X 10.10–10.12—single-touch sensor
Supported languages
On-screen display languages
Japanese, English, French, German, Italian, Spanish, Dutch, Russian, Polish, Swedish, Norwegian, Finnish
Power source
100–240 V, 50–60 Hz
Power consumption
420 W or less—full configuration
0.5 W or less—in Standby Mode
Reduction of environmentally sensitive materials
Restriction of Hazardous Substances (RoHS)
Environmental standards
REACH
EU battery (2006/66/EC)
EU packaging (94/62/EC)
ErP Lot 3
ErP Lot 7
WEEE
Directive 2006/66/EC
Directive 2005/20/EC
Safety standards
EN60950-1 (CE marking)
EN60950-1 (TUV)
IEC60950-1 (CB attestation)
AS/NZS 3112:2000—Australia, New Zealand
CNS14336 (RPC)—Taiwan
Electromagnetic Compatibility (EMC) standards
EN55022
EN61000-3-2 or EN61000-3-12
EN61000-3-3 or EN61000-3-11
EN55024 (CE)
AS/NZS CISPR 22 (C-Tick)
CNS13438 (RPC)—Taiwan
Wired LAN standards
NCC—Taiwan
Wireless LAN standards
EN300328 (CE Marking)
EN301489-1, EN301489-17 (CE Marking)
ACMA—Australia
iDA—Singapore
NCC—Taiwan
WPC—India
Operating environment

Temperature
0–40ºC—operating
-20–60ºC—storage

Humidity
10–90%—operating
10–80%—storage
