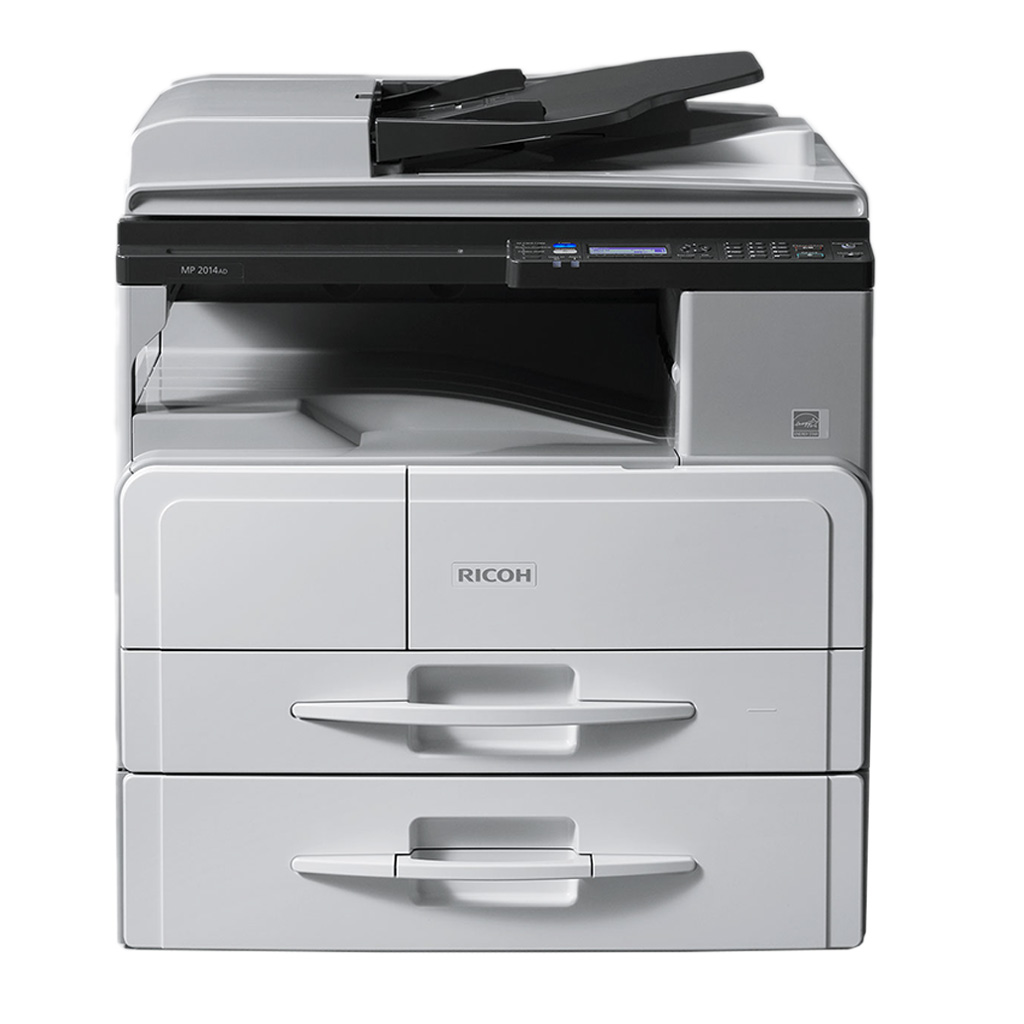

MP 2014AD A3 black and white multifunction printer

  • Copy, print, scan
  • Prints up to 20 ppm
  • 600 x 600 dpi
  • ARDF and duplex unit as standard

Sophisticated features at an economic price

The Ricoh MP 2014AD is a A3 black-and-white MFP with a brisk output speed of 20ppm, providing maximum efficiency for document processing in office. This reliable MFP is designed to provide you with robust performance in demanding office environments.

  1. Excellent productivity
    Print on a variety of paper types via the standard bypass tray, which supports special media such as overhead transparencies and envelopes within a 52–216 g/m2 weight range.
  2. Easy jam removal
    Obtain better access via the mainframe door that opens sideways and handles have also been placed on the fusing unit to facilitate easier removal of jammed paper.
  3. Low TCO
    Low Typical Electricity Consumption (TEC) value of 1.75 kWh and power use during Energy Saver Mode (Sleep Mode) is less than 4 W.
  4. Customisable shortcut keys
    Two hard keys on the left side of the operation panel that can be customised to act as shortcut keys to specific functions such as folder print, voucher copy mode and ID card scan.

Download PDF brochure


Specifications

Functions
Copy, print, scan
Colour
No
Memory - standard
256 MB
Operation panel
4-line LCD
Standard input capacity (sheets)
350
Maximum input capacity (sheets)
1,350
Standard output capacity (sheets)
250
Maximum output capacity (sheets)
250
Paper input configuration - standard
250-sheet paper input tray, 100-sheet bypass tray, duplex unit, 50-sheet ARDF
Paper output configuration - standard
250-sheet face-down output tray
Supported media

Standard paper input tray
Thin paper, Plain paper 1, Plain paper 2, Recycled paper, Colour paper, Special paper, Middle thick paper, Printed paper, Pre-printed paper, Pre‑punched paper, Letterhead, Bond paper, Cardstock

Note: Thin paper only for single-sided printing.

Bypass tray
Thin paper, Plain paper 1, Plain paper 2, Recycled paper, Colour paper, Special paper, Middle thick paper, Printed paper, Pre-printed paper, Pre‑punched paper, Letterhead, Bond paper, Cardstock, Thick paper 1, Thick paper 2, Label paper, OHP transparencies, Envelope

Note: Thin paper and Thick Paper 2 only for single-sided printing.

Paper bank PB2020
Plain paper 1, Plain paper 2, Recycled paper, Colour paper, Special paper, Middle thick paper, Printed paper, Pre-printed paper, Pre‑punched paper, Letterhead, Bond paper, Cardstock

Maximum paper size
A3
Media weight (g/m2)
52–216
Interfaces - standard
USB 2.0
Interfaces - optional
10Base-T/100Base-Tx (Ethernet)—available with optional DDST unit Type M16
Copy speed
20 cpm—A4 LEF
First copy time
10 seconds or less—A4 LEF, Tray 1
Copy resolution
300 x 600 dpi—standard mode
600 x 600 dpi—fine mode
Zoom range
50%–200%
Duplex copy
Supported
Book copy
Not available
ID card copy
Supported—requires DDST unit Type M16 option
Print speed black and white
20 ppm
Print resolution
600 x 600 dpi
Printer drivers
DDST (GDI)—optional DDST unit Type M16 is required for network printing and scanning
Duplex printing
Supported
Scan speed
200 dpi, A4
15 ipm—black and white
6 ipm—colour
Colour scanning
Supported
Scan resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 600 x 600 dpi; default 200 x 200 dpi
Scan to folder
Protocols
SMB 1.0

Security
Not available

Resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 600 x 600 dpi; default 200 x 200 dpi

Search for client folders
Not available

Home folder over LDAP
Not available

Maximum client folders per send
1 folder

Simultaneous transmission
Not available

Maximum group addresses
Not available

Input file name
Not available

Input subject
Not available

Scan to folders file size
1–5 MB

Scan to folders file types
Full colour, greyscale
JPEG, PDF

Black and white
TIFF, PDF

Program user settings

Not available

Resend
Not available
TWAIN scanning
Scan speed—A4 LEF, 200 x 200 dpi
Black and white, single-sided
10 ipm

Colour, single-sided
5 ipm

Scan resolution
75 x 75 dpi, 100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 600 x 600 dpi

Scan mode
Full colour, greyscale, black and white

Image adjustment
Gamma, sharpness, brightness adjustment, contrast, saturation, hue

Endorse
Not available

Stamp originals
Not available

Supported Windows operating systems

Windows Server 2003, R2
Windows Vista
Windows Server 2008, R2
Windows 7
Windows 8
Windows 8.1
Windows Server 2012, R2
Windows
Windows Server 2003
Windows Server 2003 R2
Windows Server 2008
Windows Server 2008 R2
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows Server 2012
Windows Server 2012 R2
Standard
Web Image Monitor
Optional
Printer as a Service (PaaS)
Power source
220–240 V, 50–60 Hz
Power consumption
950 W—Maximum power
420 W—Operating power
111 W—Ready Mode
55 W or less—Low Power Mode
12.55 W or less—ARDF
27 W or less—500-sheet paper bank PB2020
4.0 W—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC)
1.75 kWh
Warm-up time
33 seconds or less
Power saving mode
1 minute shift time—Energy Saver Mode (Sleep Mode)
30 seconds shift time—Low Power Mode
Recovery time
30 seconds—Energy Saver Mode (Sleep Mode)
10 seconds—Low Power Mode
