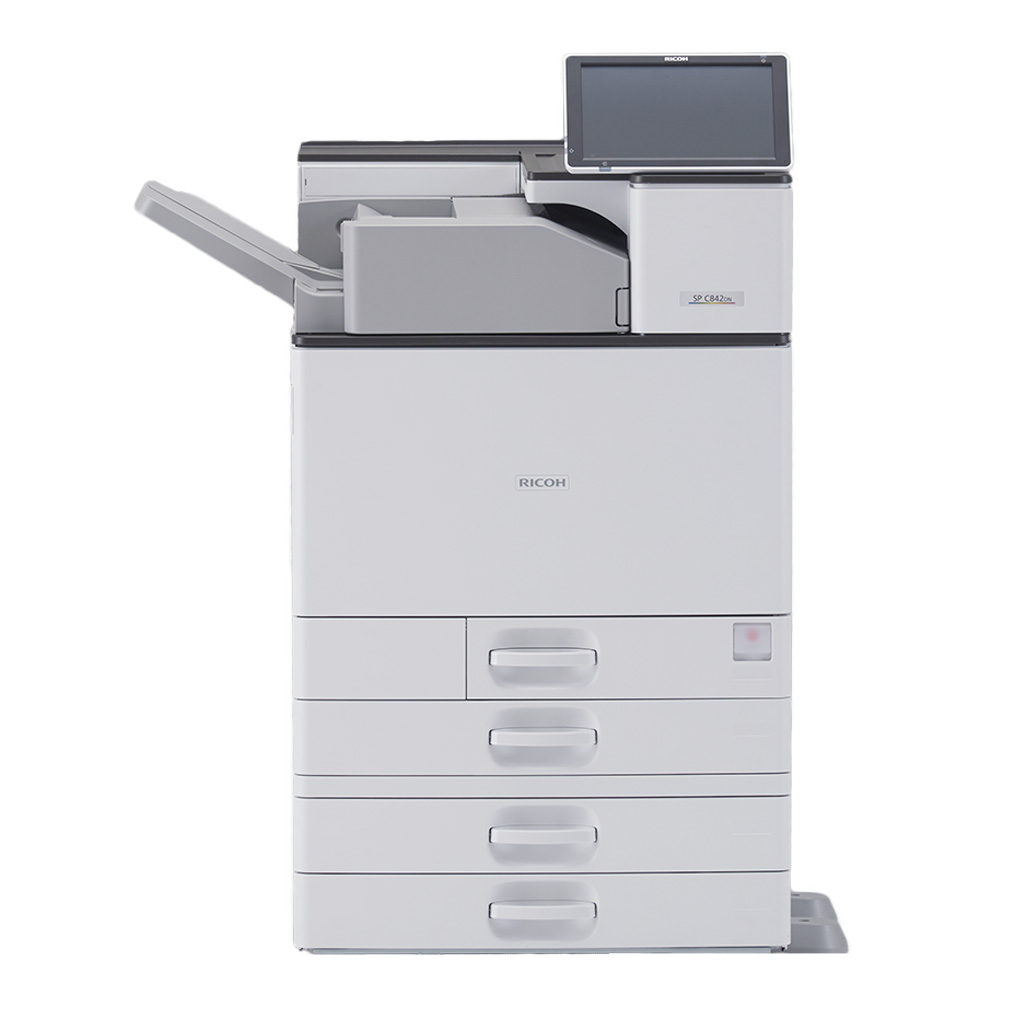

SP C842DN A3 colour printer

Prints up to 60 ppm
4.6-second first colour print
4,700-sheet max input
2.8 kWh TEC

Specifications

Functions: Print
Colour: Yes
HDD: 320 GB
Memory - standard: 2 GB
Operation panel: 10.1-inch Smart Operation Panel

Physical dimensions (WxDxH)—mainframe: 587 x 685 x 864 mm
Weight—mainframe: 85 kg or less

Standard input capacity (sheets)

1,200

Maximum input capacity (sheets)

4,700

Standard output capacity (sheets)

500

Maximum output capacity (sheets)

3,750

Paper input configuration - standard

550-sheet x 2 paper input tray, 100-sheet bypass tray, duplex unit

Paper output configuration - standard

500-sheet face-down output tray

Supported media

Standard trays
Plain paper 1, plain paper 2, recycle paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, highgloss coated paper, envelope, coated, thin paper, middle thick, thick paper 1, thick paper 2, thick paper 3, thick paper 4

Bypass tray
Plain paper 1, plain paper 2, recycle paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, highgloss coated paper, envelope, coated, label paper, transparencies, thin paper, middle thick, thick paper 1, thick paper 2, thick paper 3, thick paper 4

Optional paper banks
Plain paper 1, plain paper 2, recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, highgloss coated paper, envelope, coated, thin paper, middle thick, thick paper 1, thick paper 2, thick paper 3, thick paper 4

Maximum paper size

SRA3

Media weight (g/m2)

52–300

Interfaces - standard: Mainframe
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)

Smart Operation Panel
IEEE 802.11b/g/n (Wireless LAN)1—2.4 GHz band only
Bluetooth 4.0¹
SD card slot— supports SDHC memory card
USB Host Type A—for USB Flash memory
USB Host Type A—for External keyboard¹
USB Host Type Mini B—for NFC card reader¹
NFC tag SO14443 Type A (NFC Forum Type 2 compliant)¹

¹—Does not support printing functions
Interfaces - optional: USB 2.0
IEEE 1284
IEEE 802.11a/b/g/n
USB device server
Network protocols - standard: TCP/IP (IPv4, IPv6)

Print speed colour: 60 ppm
Print speed black and white: 60 ppm
First print time: 3.1 seconds or less—black and white, 4.6 seconds or less—colour
Print resolution: 1,200 x 1,200 dpi
Page description languages (PDLs): Standard
PCL 5c, PCL 6 (XL), PostScript 3 emulation, PDF Direct emulation, Media Print (JPEG/TIFF), PJL

Optional
IPDS, XPS, PictBridge, genuine Adobe PostScript 3, PDF Direct from Adobe
Printer drivers: Standard
PCL 5c, PCL 6 (XL), PostScript 3 emulation, XPS

Optional
Genuine Adobe PostScript 3

Note: XPS driver can be downloaded from Ricoh website.
Duplex printing: Standard

Data Overwrite Security System (DOSS) - Standard: Yes
Encryption: SSH encryption
Address book, authentication password encryption
Authentication: 802.1x wired authentication
WiFi Protected Setup (WPS)
Wireless LAN security—IEEE 802.11i, IEEE 802.11w, WEP, WPA
Quota setting
User authentication—Windows, LDAP via Kerberos, Basic, and User code

Windows: Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows 10
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Macintosh: OS X Native
Unix: Sun Solaris
HP-UX
Red Hat Linux
SCO OpenServer
IBM AIX
SAP: Environment
SAP R/3 Device Type
Barcode fonts
OCR fonts

Power source: 220–240 V, 50/60 Hz
Power consumption: 1,850 W or less—maximum power
840.9 W—operating power, black and white
978.1 W—operating power, colour
52.1 W—Ready Mode
0.8 W—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC): 2.8 kWh
Warm-up time: 20 seconds or less
Power saving mode: 1-60 minutes shift time—Energy Saver Mode (Sleep Mode)
Recovery time: 7.3 seconds—Energy Saver Mode (Sleep Mode)
Environmental standards: RoHS
WEEE
KC Mark
GB21521-2014 (China)
China ECO Mark (China)
Green labels: BAM, China Eco Mark (10 circle)
