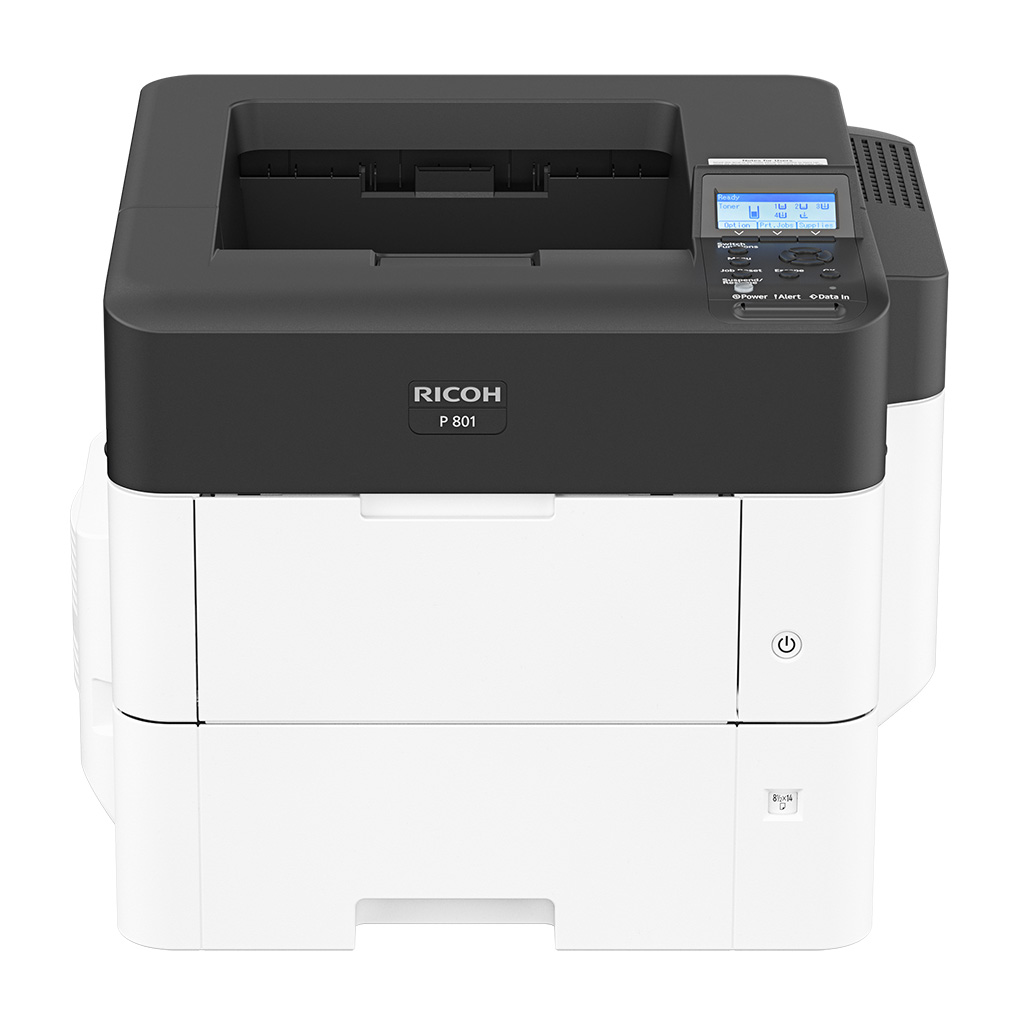

P 801 A4 black and white printer

  • Prints up to 60 ppm
  • 11,000-sheet starter toner
  • Mobile printing
  • Max 2,600-sheet input
Configure your device here
Related Links
Small but powerful
Compact printers can carry a heavy load that eases the pressure on busy offices, all in a small footprint.

Value speed and volume in your workflows

Print black-and-white output at 60 pages per minute (ppm). Maximum input capacity of 2,600 sheets, using the four optional paper feed units, makes it ideal for any large office print jobs with notable low Typical Electricity Consumption (TEC) values that make it affordable to operate in the long run.

Workflow enhancements

Users will be able to seamlessly connect to the printers via a suite of connectivity options, including RICOH Smart Device Connector, Mopria® and AirPrint® for mobile printing from Android and Apple devices, respectively.

Print with confidence

Intuitive feature navigation is provided by a 4-line LCD panel while PostScript 3 and PDF Direct emulation as standard allows users to produce professional documents accurately out of the box.

  1. Excellent performance
    High-yield toner that offers up to 40,000 pages per cartridge
  2. Reliable and durable
    Stable and uninterrupted performance
  3. Smart connectivity
    Meet the needs of the mobile workforce
  4. Quality output
    Crisp and clear 1,200 x 1,200 dpi output

Download PDF brochure

Specifications

Functions
Print
Colour
No
HDD
320 GB—optional
Memory - standard
2 GB
Operation panel
4-line LCD
Physical dimensions (WxDxH)—mainframe
443 x 410 x 366 mm
Weight—mainframe
18 kg or less
Standard input capacity (sheets)
600
Maximum input capacity (sheets)
2,600
Standard output capacity (sheets)
500
Maximum output capacity (sheets)
500
Paper input configuration - standard
500-sheet paper tray, 100-sheet bypass tray, duplex unit
Paper output configuration - standard
500-sheet face-down output tray
Supported media
Standard tray, duplex unit
Plain Paper 1–2, Middle Thick Paper, Thick Paper 11, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper

Bypass tray
Thin Paper, Plain Paper 1–2, Middle Thick Paper, Thick Paper 1–3, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, OHP, Label Paper, Envelope

Paper Feed Unit PB1160
Plain Paper 1–2, Middle Thick Paper, Thick Paper 11, Recycled Paper, Coloured Paper, Special paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, Envelope

1—Allowed weights for Trays 1–5 and duplex printing are 106–120 g/m2
Maximum paper size
A4
Media weight (g/m2)
60–220
Interfaces - standard

10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB Device 2.0
USB Host Type A (2 ports)
NFC tag

Interfaces - optional
IEEE 1284
Wireless LAN (IEEE 802.11a/b/g/n)
Device Server Type M37 (additional NIC port)
Network protocols - standard
TCP/IP (IPv4, IPv6)
Print speed black and white
60 ppm
First print time
6 seconds or less
Print resolution
1,200 x 1,200 dpi (1-bit)
Page description languages (PDLs)

Standard
PCL 5e, PCL 6 (XL), PostScript3 emulation, PDF Direct emulation

Optional
Adobe PostScript 3, Adobe PDF Direct, IPDS, XPS

Note: IPDS unit will be available after product launch.

Printer drivers

Standard
PCL 5e, PCL 6 (XL), PostScript3

Optional
Adobe PostScript 3

Duplex printing
Standard
Mobile printing
AirPrint, Mopria®, RICOH Smart Device Connector
Data Overwrite Security System (DOSS) - Standard
With optional HDD
Encryption
HDD encryption
Authentication password
S/MIME
Authentication

802.1x wired authentication
IEEE 802.11i security (WPA)
Quota setting/Account limit
User authentication—Windows and LDAP via Kerberos, basic
User code authentication—8 digits, 1,000 user codes
WiFi Protected Setup (WPS) support

Windows
Windows 7
Windows Server 2008
Windows Server 2008 R2
Windows 8.1
Windows Server 2012
Windows Server 2012 R2
Windows 10
Windows Server 2016
Windows Server 2019
Macintosh
OS X Native v10.11 or later—PostScript 3 only
Unix
Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—6.1, 7.1, 7.2
SAP
Environment—R/3, R/4
SAP R/3 Device Type—supported
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS, UPC/EAN
OCR fonts—OCR A, OCR B
Standard
@Remote Embedded
Web Image Monitor
Optional
@Remote Office
@Remote Enterprise Pro
@Remote Connector NX
Card Authentication Package
Device Software Manager
Enhanced Locked Print NX
GlobalScan NX
Java SDK
Printer Driver Packager NX
RICOH Streamline NX
Mobile apps
RICOH Smart Device Connector
Power source
220–240 V, 50/60 Hz
Power consumption
1,250 W or less—maximum operating power (nominal)
1,400 W or less—maximum operating power (guaranteed)
749 W—printing, operating (nominal)
67.9 W or less—Ready Mode (nominal)
2.9 W—Energy Saver Mode (Sleep Mode) (nominal)
Typical Electricity Consumption (TEC)
3.0 kWh
Warm-up time
25.4 seconds or less
Recovery time
10 seconds or less—from Ready Mode
24 seconds or less—from Energy Saver Mode (Sleep Mode)
Green labels
Blue Angel Mark (BAM), Energy Efficiency Labelling Scheme (Hong Kong), Thai Green Label
