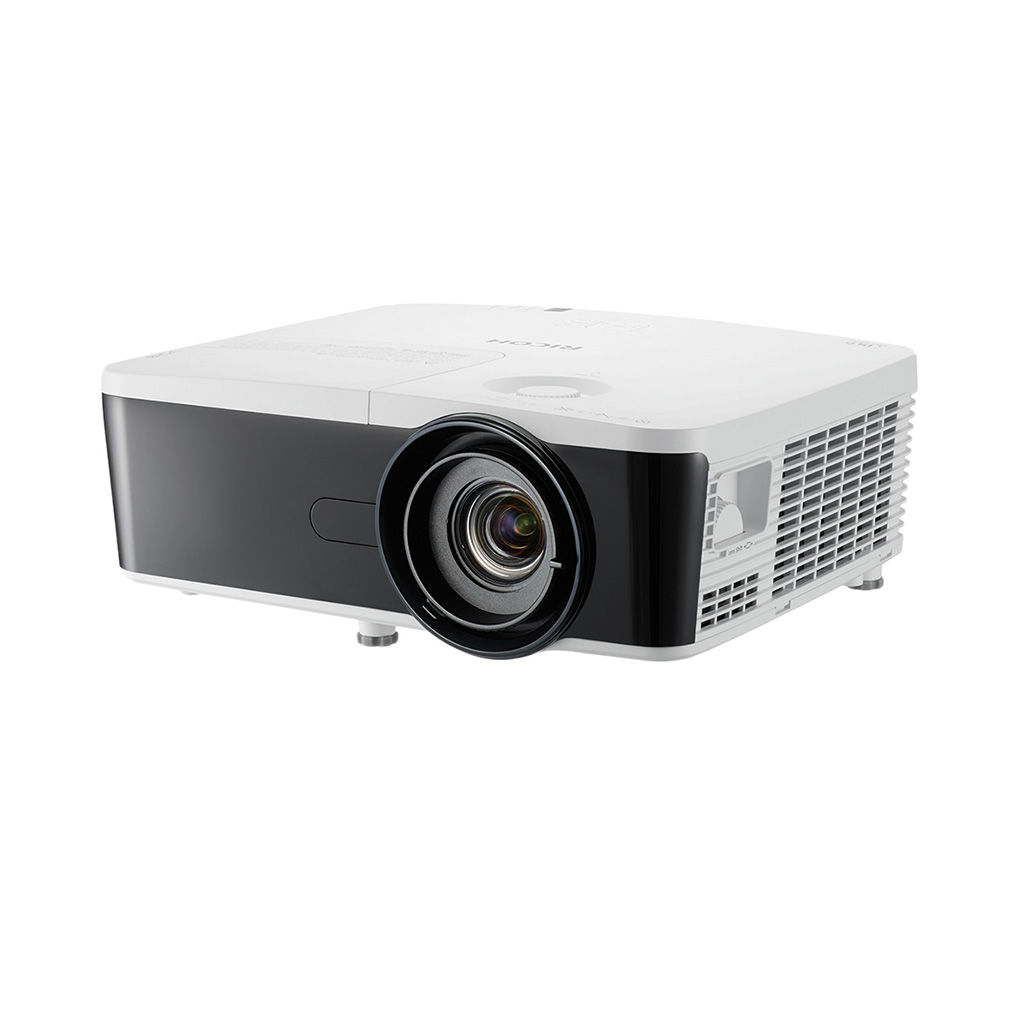

PJ X5580

6,000-lumen standard projector

  • 1,024 x 768 pixels (XGA)
  • 4,000-hour lamp life (Eco)
  • 30–300-inch projection size
  • 10 W stereo speakers
Related Links
When you needed it yesterday
Busy offices need to keep up with high demand. Fast printers that can keep everyone moving boosts productivity.

Superb image resolution, brightness and feature rich specification

  • A choice of resolutions provides the ideal solution

    Ensures that from 10 to 50 people will enjoy bright, vibrant presentation.

  • HD quality resolution and high contrast images

    This means that you can screen HD quality content from input sources such as a Blu-ray player in 16:10 screen aspect ratio.

  • Advanced choice of connectivity options

    A wide choice of connectivity options allows you to connect a broad range of input sources.

  • Flexible installation and easy operation

    Compatible with the latest network management and control utilities including Crestron, AMX and PJ Link. An optional wireless dongle even allows operation without a wired LAN connection.

Specifications

Projector type
Standard
What's included

CD-ROM
Includes instruction manual in Japanese, English, and Chinese

Read first manual
In English, German, French, Spanish, Italian, and Portuguese

Signal cable
RGB cable

Power cord
Yes

Remote control
Yes

Battery for remote control
AAA x 2

Carrier bag
No

Filter
Yes—built-in

Lens cap
Yes

Physical dimensions (WxDxH)—mainframe
424 x 356 x 150 mm
Weight—mainframe
6.35 kg or less
Projection system
DLP
Contrast
9,000:1—Image Eco Mode
Aspect ratio
4:3
Brightness
6,000 lumens
Resolution
1,024 x 768 pixels (XGA)
Lamp type
High-pressure mercury lamp
Lamp wattage
365 W—Standard Mode
292 W—Eco Mode
Lamp life
3,000 hours—Standard Mode
4,000 hours—Eco Mode
Lens type
Built-in
Lens focal length
f:17.63–31.36 mm
Lens aperture
F:2.3–3.45
Zoom type
Manual
Zoom ratio
1:8x
Focus method
Manual
Projection size
30–300 inches
Projection distance
1.0–13.5 m
Projection ratio
1.241–2.222
Lens shift
Manual
Vertical 95–105%
Horizontal ±10%
Keystone correction
Vertical and horizontal ±30º
Projector modes
Standard, Rear, Ceiling, Rear ceiling
Speaker
10 W x 2
Other supported features
AV Mute, Freeze, Resize (magnify), Wall colour mode,  User logo, USB firmware update
Interfaces - standard
Input
Computer IN terminal
D-SUB 15-pin x 2

Composite video terminal
RCA x 1-pin x 1

S-video terminal
Mini DIN 4-pin x 1

Digital terminal
HDMI (MHL-compatible) x 1
HDMI x 1

DisplayPort
DisplayPort x 1

Audio IN terminals
3.5 mm mini jack x 2

Microphone
3.5 mm mini jack x 1

PC control terminal
D-SUB 9-pin x 1 (RS-232C)

Service terminal
USB Mini Type B x 1

Output
Monitor OUT terminal
D-SUB 15-pin x 1

Audio OUT terminal
3.5 mm mini jack x 1

Network
LAN connectivity
RJ-45 x 1

Wireless LAN
Optional

Other
3D Sync
Mini DIN 3-pin x 1

12V trigger
3.5 mm mini jack x 1
Kensington lock
Yes
Password protection of device
Yes
Supported languages

Menu languages
Japanese, English, German, French, Italian, Spanish, Polish, Swedish, Thai, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Indonesian, Turkish, Norwegian, Finnish, Czech, Hungarian, Danish, Dutch

Instruction manual
Japanese, English, and Chinese

Read first manual
English, German, French, Spanish, Italian, and Portuguese

Power source
100–240 V, 50–60 Hz
Power consumption

Full mode
425 W—typical
470 W—maximum

Eco Mode
350 W—typical
385 W—maximum

Standby Mode
0.5 W or less—Monitor out off
1.0 W or less—Monitor out on

Sound power level
35 dB or less—Standard Mode
32 dB or less—Eco Mode
Safety standards
EN60950-1 (CE Marking, TUV)
IEC60950-1 (CB attestation, PSB)
Restriction of Hazardous Substances (RoHS)
REACH
EuP (Lot 6)
Battery Directive 2006/66/EC and 2005/20/EC
WEEE
Electromagnetic Compatibility (EMC) standards
EN55022
EN61000-3-2
EN61000-3-3
EN55024 (CE Marking)
AS/NZS CISPR22 (C-Tick)
Operating environment

Operating
5 to 40ºC—temperature
20 to 80% non-condensing—relative humidity

Storage
-20 to 60ºC—temperature
20 to 80% non-condensing—relative humidity

Other environmental features
Eco Mode
