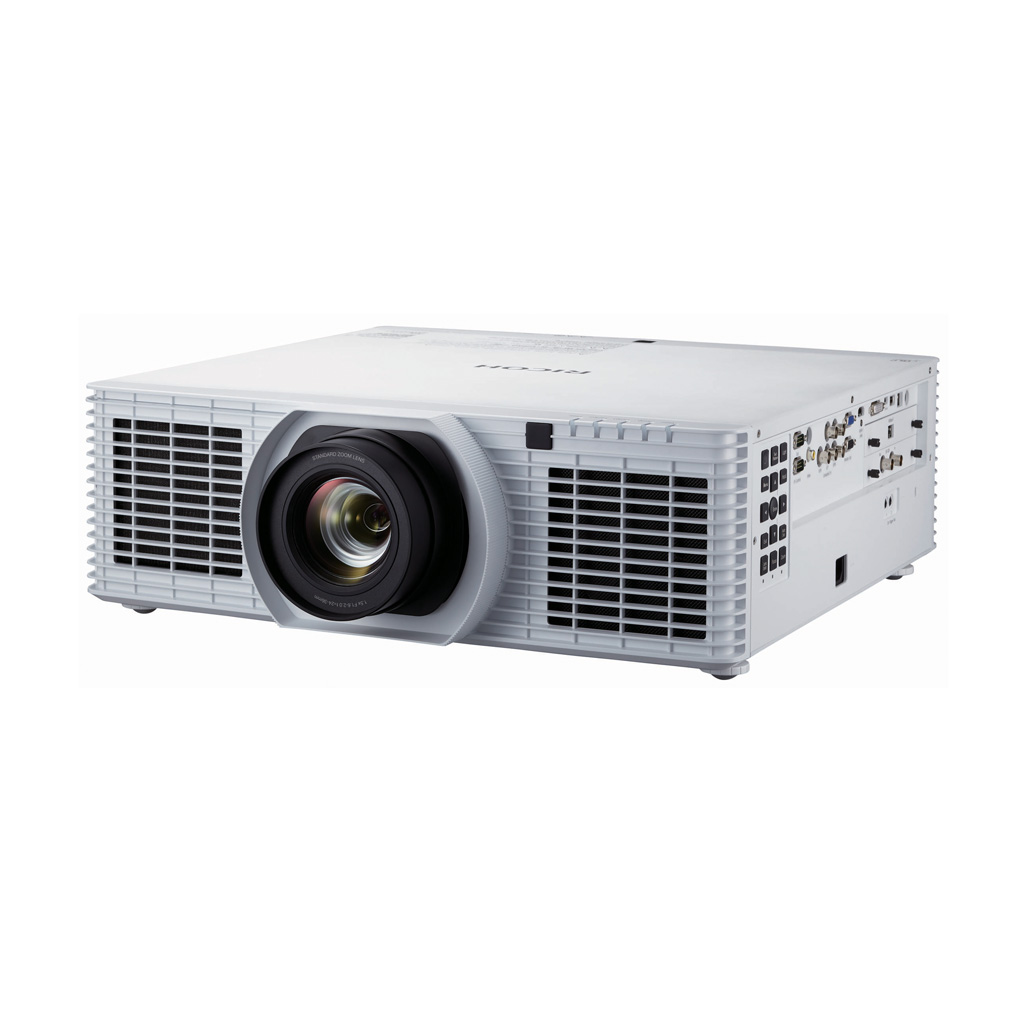

PJ X6590 10,000-lumen high-end projector

1,024 x 768 pixels (XGA)
2,500-hour lamp life
Six lens choices
Colour adjustment feature

Specifications

Projector type

High-end

What's included

Cables
RGB cable
Power cable

Lens cap
Included

Remote control
39-key

Battery for remote control
AAA x 2 included

Carrier bag
Not available

CD-ROM
Instruction manual
Projector management utility

Read first manual
Included

External filter
Included

Physical dimensions (WxDxH)—mainframe: 548 x 522 x 174 mm
Weight—mainframe: 20.3 kg

Projection system: DLP
Contrast: 500:1—Native
750:1—High Contrast Mode
Aspect ratio: 4:3
Brightness: 10,000 lumens
Resolution: 1,024 x 768 pixels (XGA)
Light source life: 2,500h/3,000h (Eco)
Lamp type: High-pressure dual mercury lamps
Lamp wattage: 365 W
Lens type: Type C1—Ultra-short zoom
Type C2—Short zoom
Type C3—Standard zoom
Type C4—Middle zoom
Type C5—Long zoom
Type C6—Ultra-long zoom
Lens focal length: f:11.3–125.95 mm—depends on lens in use
Lens aperture: F:1.6–2.34—depends on lens in use
Zoom type: Motorised
Zoom ratio: 1.25–1.6x—depends on lens in use
Uniformity: 80%—minimum
Focus method: Motorised
Colour reproduction: 1,073,000,000 colours
Projection size: 60–600 inches
Projection distance: 0.96–111.84 m—depends on lens in use
Projection ratio: 0.79–9.15—depends on lens in use
Tilt angle: ±20 degrees—mechanical
Lens shift: Depends on lens in use
Keystone correction: Depends on lens in use
Four corner adjustment: Supported
Projector modes: Normal, rear, ceiling, rear ceiling, portrait
3D support: DLP Link, Blu-ray 3D
Control system: Crestron, PJ Link, AMX Discovery, Extron
Speaker: No
Other supported features: AV mute, Freeze, User logo, NCE (Natural Colour Enhancer), Wall colour, Direct power on, Closed captioning, 3D Ready, High altitude, 360-degree projection, Portrait mode, Lens memory, Pincushion correction—optional, Geometric correction—optional, Edge blending—optional

Interfaces - standard

Computer IN/OUT
D-SUB 15 pin x 1

Video terminal
Composite video RCA x 1
S-Video x 1
5 BNC x 1

Digital terminal
DVI x 1
HDMI/MHL x 1

Control terminal
RS-232C x 2 (PC Control)
Vesa miniDIN-3 x 1 (3D sync)
RJ45 LAN x 1
3.55 mm 12 V x 2 (Trigger Out)
3.55 mm wired remote x 2
IR receiver—front/top

USB terminal
USB Type A x 1
Mini USB x 1

Kensington lock: Yes
Password protection of device: Yes
Other security features: Security bar

Supported languages

Menu languages
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Swedish, Polish, Turkish, Dutch, Danish, Norwegian, Arabic, Indonesian, Thai

Read first manual languages
English, German, French, Italian, Spanish, Portuguese, Arabic, Traditional Chinese

Instruction manual
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Swedish, Polish, Turkish, Dutch, Danish, Norwegian, Arabic, Indonesian, Thai

Optional: Blending/stacking tool

Power source

100–240 V

Power consumption

870 W—Standard
700 W—Eco Mode
0.5 W or less—Standby Mode
3 W—Network Standby Mode

Sound power level

40 dB—Standard Mode
34 dB—Eco Mode

Environmental standards

EU Battery Directive (2006/66/EC)
Packaging and Packaging Waste Directive (94/62/EC)
WEEE
Restriction of Hazardous Substance (RoHS)
REACH
ErP (Lot 6)

Safety standards

CE Marking
TUV
BIS (India)

Electromagnetic Compatibility (EMC) standards

EN62311 (CE)
EMC Directive
Australia EMC (C-Tick/RCM)
NZ EMC (C-Tick/RCM)

Operating environment

Operating conditions
0–40ºC—temperature
90%—humidity

Storage conditions
-10–65ºC—temperature
90%—humidity

Altitude conditions
0–499 m—0–40ºC
500–1,499 m—0–35ºC
1,500–3,000 m—0–30ºC

Other environmental features

Eco Mode, Power on time—20 seconds, Power off time—60 seconds
