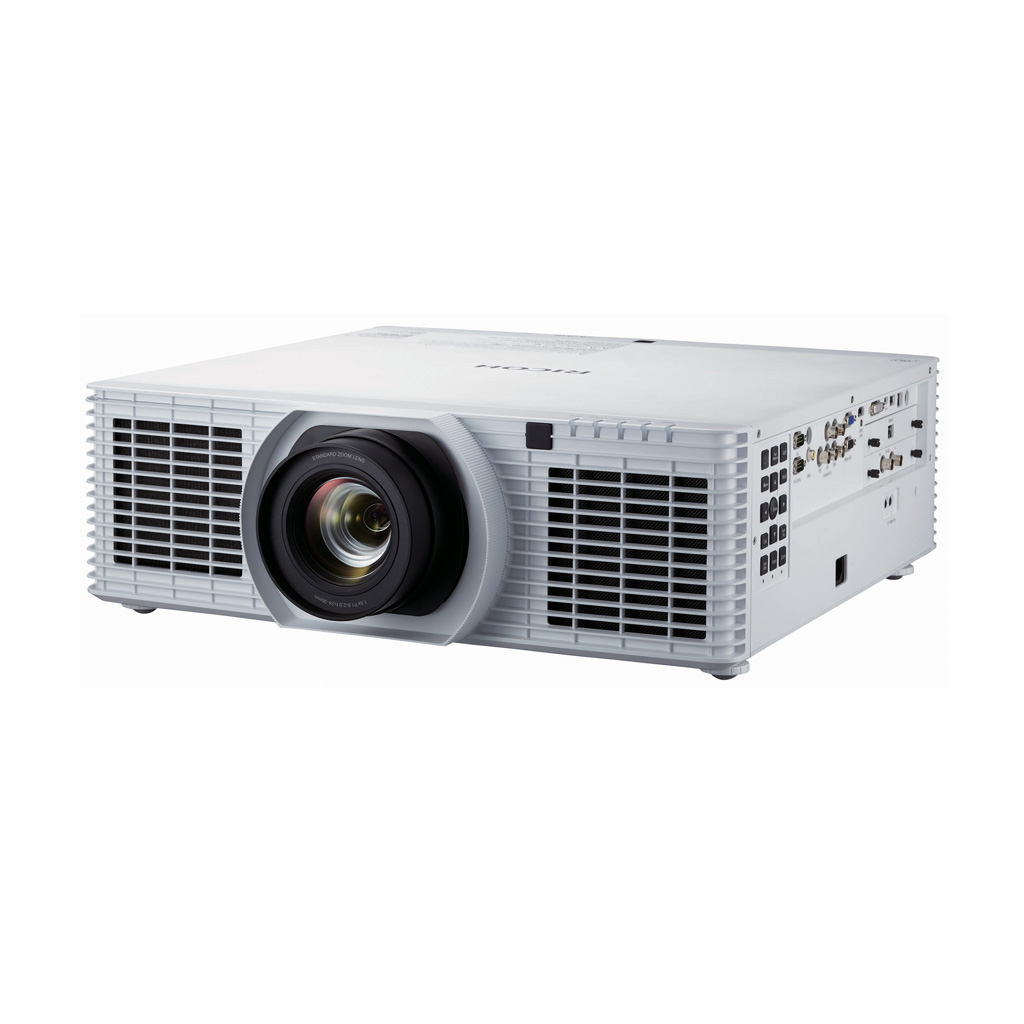

PJ X6480

8,800-lumen high-end projector

  • 1,024 x 768 pixels (XGA)
  • 2,500-hour lamp life
  • Six lens choices
  • Colour adjustment feature


Specifications

Projector type
High-end
What's included

Cables
RGB cable
Power cable

Lens cap
Included

Remote control
39-key

Battery for remote control
AAA x 2 included

Carrier bag
Not available

CD-ROM
Instruction manual
Projector management utility

Read first manual
Included

External filter
Included

Physical dimensions (WxDxH)—mainframe
548 x 522 x 174 mm
Weight—mainframe
20.3 kg
Projection system
DLP
Contrast
500:1—Native
750:1—High Contrast Mode
Aspect ratio
4:3
Brightness
8,800 lumens
Resolution
1,024 x 768 pixels (XGA)
Lamp type
High-pressure dual mercury lamps
Lamp wattage
365 W
Lamp life
2,500 hours—Standard
3,000 hours—Eco Mode
1,500 hours—Portrait Mode (sRGB)
Lens type

Type C1—Ultra-short zoom
Type C2—Short zoom
Type C3—Standard zoom
Type C4—Middle zoom
Type C5—Long zoom
Type C6—Ultra-long zoom

Lens focal length
f:11.3–125.95 mm—depends on lens in use
Lens aperture
F:1.6–2.34—depends on lens in use
Zoom type
Motorised
Zoom ratio
1.25–1.6x—depends on lens in use
Uniformity
80%—minimum
Focus method
Motorised
Colour reproduction
1,073,000,000 colours
Projection size
60–600 inches
Projection distance
0.96–111.84 m—depends on lens in use
Projection ratio
0.79–9.15—depends on lens in use
Tilt angle
±20 degrees—mechanical
Lens shift
Depends on lens in use
Keystone correction
Depends on lens in use
Four corner adjustment
Supported
Projector modes
Normal, rear, ceiling, rear ceiling, portrait
3D support
DLP Link, Blu-ray 3D
Control system
Crestron, PJ Link, AMX Discovery, Extron
Speaker
No
Other supported features
AV mute, Freeze, User logo, NCE (Natural Colour Enhancer), Wall colour, Direct power on, Closed captioning, 3D Ready, High altitude, 360-degree projection, Portrait mode, Lens memory, Pincushion correction—optional, Geometric correction—optional, Edge blending—optional
Interfaces - standard

Computer IN/OUT
D-SUB 15 pin x 1

Video terminal
Composite video RCA x 1
S-Video x 1
5 BNC connector x 1

Digital terminal
DVI x 1
HDMI/MHL x 1

Control terminal
RS-232C x 2 (PC Control)
Vesa miniDIN-3 x 1 (3D sync)
RJ45 LAN x 1
3.55 mm 12 V x 2 (Trigger Out)
3.55 mm wired remote x 2
IR receiver—front/top

USB terminal
USB Type A x 1
Mini USB x 1

Kensington lock
Yes
Password protection of device
Yes
Other security features
Security bar
Supported languages

Menu languages
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Swedish, Polish, Turkish, Dutch, Danish, Norwegian, Arabic, Indonesian, Thai

Read first manual languages
English, German, French, Italian, Spanish, Portuguese, Arabic, Traditional Chinese

Instruction manual
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Swedish, Polish, Turkish, Dutch, Danish, Norwegian, Arabic, Indonesian, Thai

Optional
Blending/stacking tool
Power source
100–240 V
Power consumption
780 W—Standard
700 W—Eco Mode
0.5 W or less—Standby Mode
3 W—Network Standby Mode
Sound power level
40 dB—Standard Mode
34 dB—Eco Mode
Environmental standards
EU Battery Directive (2006/66/EC)
Packaging and Packaging Waste Directive (94/62/EC)
WEEE
Restriction of Hazardous Substance (RoHS)
REACH
ErP (Lot 6)
Safety standards
CE Marking
TUV
BIS (India)
Electromagnetic Compatibility (EMC) standards
EN62311 (CE)
EMC Directive
Australia EMC (C-Tick/RCM)
NZ EMC (C-Tick/RCM)
Operating environment

Operating conditions
0–40ºC—temperature
90%—humidity

Storage conditions
-10–65ºC—temperature
90%—humidity

Altitude conditions
0–499 m—0–40ºC
500–1,499 m—0–35ºC
1,500–3,000 m—0–30ºC

Other environmental features
Eco Mode, Power on time—20 seconds, Power off time—60 seconds
