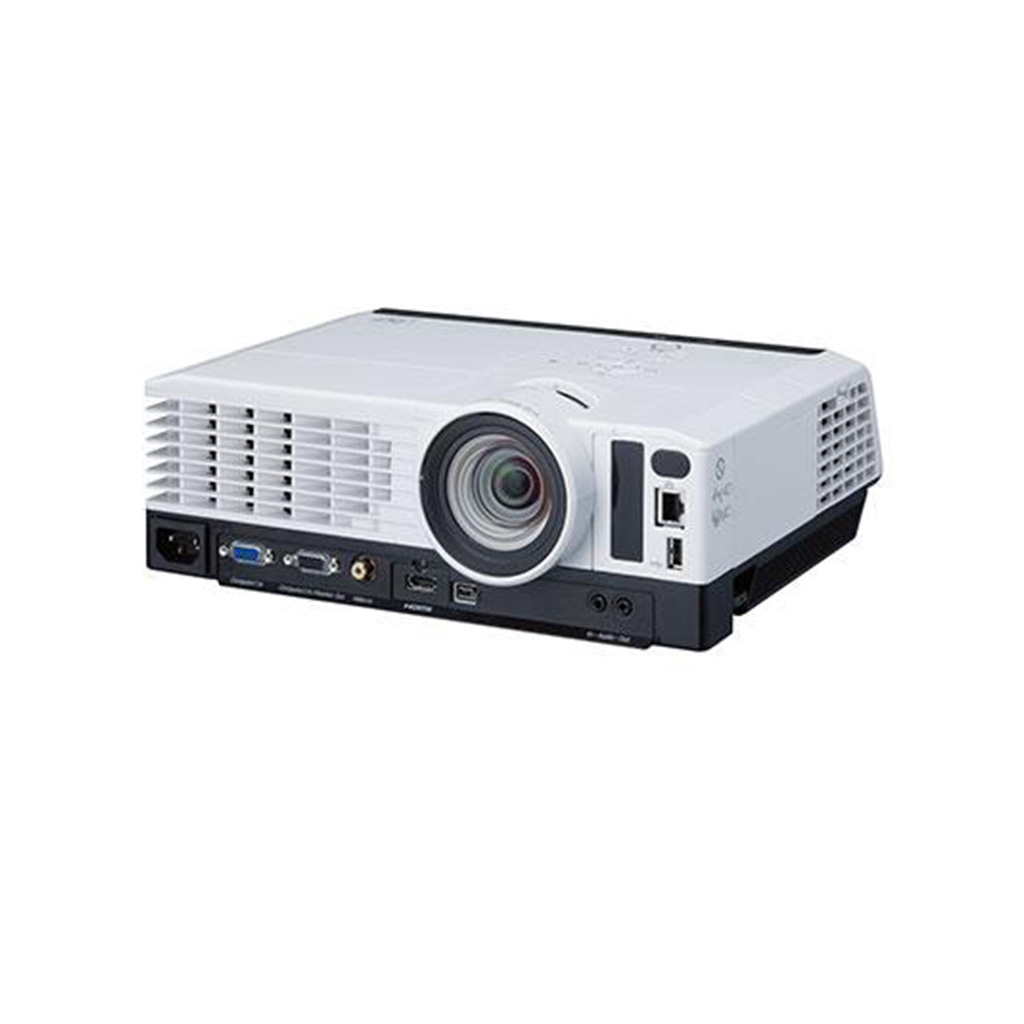

PJ X3351N 3,500-lumen desk-edge projector

1,024 x 768 pixels (XGA)
5,000-hour lamp life (Eco)
30–400-inch projection size
Network connectivity

Connect and collaborate easily, in classrooms and meetings

Attract attention when you deliver your presentation or video. The PJ X3351N is a lightweight, high quality projector perfect for busy offices and schools.

Widescreen projection with less clutter
Projector cables and a noisy fan can derail your presentation. Front facing design directs all noise, heat and cables away from your audience
A network projector with wired or wireless options
Standard wired and wireless networking for maximum flexibility. Miracast mobile connectivity enables screen mirroring from your PC and Android devices
Built in audio
Take advantage of booming audio from 10‑watt, built-in speakers and eliminate additional speaker costs
Communicate creatively with 360‑degree projection
Project on the ceiling or floor with 360‑degree projection that allows you to project at any angle. Keystone correction automatically fixes any image distortion

Lightweight design, bright impact

An innovative small projector with added space saving features. No fuss operation with auto‑brightness and more ways to connect, including from mobile devices. Display videos with sound using the built in speaker – you can show movies in 3D with a screen size up to 400 inches. No heat or noise to disturb you, all cables and fan exhaust are located in front for desk front placement.

Specifications

Projector type: Desk-edge
What's included: CD-ROM
Includes instruction manual in English, JPEG conversion software, network utility, and projector management utility

Signal cable
RGB cable—3 metres

Power cord
3 metres

Conversion adapter
Yes

Carrier bag
Yes

Remote control
Yes

Battery for remote control
AAA battery x 2

Physical dimensions (WxDxH)—mainframe: 297 x 235 x 100 mm
Weight—mainframe: 3.1 kg

Projection system

DLP

Contrast

13,000:1

Aspect ratio

4:3

Brightness

3,500 lumens

Resolution

1,024 x 768 pixels (XGA)

Light source life

3,500h/5,000h (Eco)

Lamp type

High-pressure mercury lamp

Lamp wattage

250 W

Lens focal length

f:13—19.6 mm

Lens aperture

F:2.56–3.35

Zoom type

Manual

Zoom ratio

1.5x

Focus method

Automatic

Colour reproduction

1,073,000,000 colours

Projection size

30–400 inches

Projection distance

0.68–14.42 m

Projection ratio

1.11–1.73

Keystone correction

Automatic—vertical
Manual—vertical, horizontal, four corners

Projector modes

Standard, Rear, Ceiling, Rear ceiling, 360-degree free tilt

Input signals

RGB compatible signals (analogue, digital)
XGA (1,024 x 768), SVGA (800 x 600), VGA (640 x 480)—real display
UXGA (1,600 x 1,200), SXGA (1,280 x 1,024), WXGA (1,280 x 800)—compressed representation

Input signals (mono)
NTSC, PAL, SECAM, PAL-M, PAL-60, NTSC 4.43, 50 Hz, 60 Hz, PAL-N

Analogue RGB compatible scanning frequency
15–100 kHz—horizontal
23–85 Hz—vertical

3D support

Yes

Control system

AMX, Crestron, PJLink

Speaker

Internal, 10 W, mono

Other supported features

AV mute, Freeze, Resize (magnify), Wall colour correction, Adjuster (front x 2, rear x 1), Multi screen (1 PC to 4 projectors), Automatic brightness control, Closed captioning, Color Universal Design, Presentation timer, Interactive ready (Point blank), Projector management, Miracast, Digital camera connectivity, Simultaneous wired and wireless connectivity, USB firmware updates, Web Image Monitor connectivity, User logo, DLNA, Front exhaust fan, Digital zoom—80 to 100% reduction, High altitude mode—up to 2,500 m

Interfaces - standard

Computer 1 input terminal
Mini D-SUB 15-pin x 1

Computer 2 monitor input/output terminal
Mini D-SUB 15-pin x 1

Video terminal
RCA 1-pin x 1

Audio input terminal
Mini jack x 1

Audio output terminal
Mini jack x 1

PC control terminal
USB Type Mini B x 1

HDMI terminal
HDMI x 1

USB terminal
USB Type A x 1

LAN
RJ-45 x 1 (10Base-T/100Base-TX/1000Base-T compliant)

Wireless LAN
IEEE 802.11a/b/g/n

Communication modes
Ad-hoc, infrastructure, Miracast

Miracast supported devices
Nexus 5 (Android 4.4), Nexus 7 (2013, Android 4.3), Nexus 10 (Android 4.4), Surface 2 (Windows RT 8.1), Surface Pro 3 (Windows 8.1 Pro)

Note: Based on WiFi Certified Miracast standard, but connectivity with all Miracast compatible devices is not guaranteed.

Network authentication
WPA/WPA2-PSK, WPA2-PSK, WPA/WPA2-EAP, WPA2-EAP, open system

Network encryption
WEP, TKIP, CCMP (AES), no encryption

Present direct from USB device (PC-free presentation)
Slide show—still image, animation
Thumbnails—supported
Compatible format for USB memory—JPEG, MPEG2, MPEG4
File extension for USB memory—.jpg, .jpeg, .mpeg, .mpg, .m2ts, .m2t, .mp4, .mov

Digital camera connection support
Pentax
645D, K-50, K-3, K-01, K-5 II, K-5 II S, Q7, Q10, WG-3, WG-3 GPS, WG-4, WG-4 GPS, WG-20, WG-20 GPS, MX-1

Ricoh
G700, GXR GR LENS A12 50mm, GXR GR LENS A12 28mm

Network capable

Yes

Kensington lock: Yes
Password protection of device: Yes
Other security features: Key lock of device, Security bar

Open SSL acknowledgement
This product includes software developed by the OpenSSL Project to use in the OpenSSL Toolkit (http://www.openssl.org/)
This product includes cryptographic software written by Eric Young ([email protected])
This product includes software written by Tim Hudson ([email protected])

Windows

Network utility software
Windows Vista SP2 or greater—Home Basic, Home Premium, Business, and Ultimate editions
Windows 7 SP 1—Home Premium, Professional, Enterprise, and Ultimate editions
Windows 8 desktop mode—Pro and Enterprise editions
Windows 8.1 desktop mode—Pro and Enterprise editions

JPEG conversion software
Windows Vista SP2 or greater—Home Basic, Home Premium, Business, and Ultimate editions
Windows 7 SP1—Home Premium, Professional, Enterprise, and Ultimate editions
Windows 8—Pro and Enterprise editions
Windows 8.1—Pro and Enterprise editions

Projector management software
Windows Vista SP2 or later—Home Basic, Home Premium, Business, and Ultimate editions
Windows 7 SP1—Home Premium, Professional, Enterprise, and Ultimate editions
Windows Server 2008 SP2
Windows Server 2008 R2 SP1—standard edition
Windows 8—Pro and Enterprise editions
Windows 8.1—Pro and Enterprise editions

Interactive kit software
Windows 7 SP1—Home Premium, Professional, Enterprise, and Ultimate editions
Windows 8 desktop mode—Pro and Enterprise editions
Windows 8.1 desktop mode—Pro and Enterprise editions

Web image monitor
Internet Explorer 8 and above supported

Note: Not compatible with Windows modern UI and Windows RT.

Macintosh

Network utility software—OS X 10.7–10.10 , Web Image Monitor—Safari 7

Supported languages

Menu languages
Japanese, English, French, German, Italian, Spanish, Portuguese, Russian, Swedish, Turkish, Polish, Norwegian, Czech, Greek, Hungarian, Romanian, Danish, Dutch, Finnish, Thai, Arabic, Traditional Chinese, Indonesian

Standard: PC free presentation
Network utility software
JPEG conversion software
Projector management utility
Optional: Interactive kit software

Power source: 100–240 V, 50/60 Hz
Power consumption: 316 W—Standard mode
334 W—Maximum power consumption
0.3 W—Standby mode (network off)
1.4 W or less—Standby mode (wired LAN on)
1.8 W or less—Standby mode (wireless LAN on)
Sound power level: 38 dB or less—Standard mode
32 dB or less—Eco mode
Environmental standards: Restriction of Hazardous Substances (RoHS)
REACH regulations
ErP (Lot 6, 26)
WEEE
Safety standards: EN60950-1 (CE Marking, TUV Mark)
IEC60950-1 (CB attestation)
THA-SAFETY-0001 (power supply)
NZL-SAFETY-0002 (power supply and power cord)
AUS-SAFETY-0003 (power supply and power cord)
Electromagnetic Compatibility (EMC) standards: EN55022
EN61000-3-2
EN61000-3-3
EN55024 (CE Marking)
EMC (RCM Mark)
HKG (EMC)
Wireless LAN standards: EN300 328 (CE)
EN301 489-1, EN301 489-17 (CE)
NCC
Wireless RCM mark
ESER
SIRIM
HKG
WPC
NTC
DGPT
Operating environment: Conditions of environment
Temperature 5–35ºC
Relative humidity 30–70%

Storage conditions
Temperature from -10 to 50ºC
Humidity from 15 to 80% relative humidity
Maximum stack 12 cartons

Transportation conditions
Temperature from -10 to 50ºC
Humidity from 15 to 80% relative humidity
Other environmental features: Eco Mode, Carbon meter, Timer On/Off
