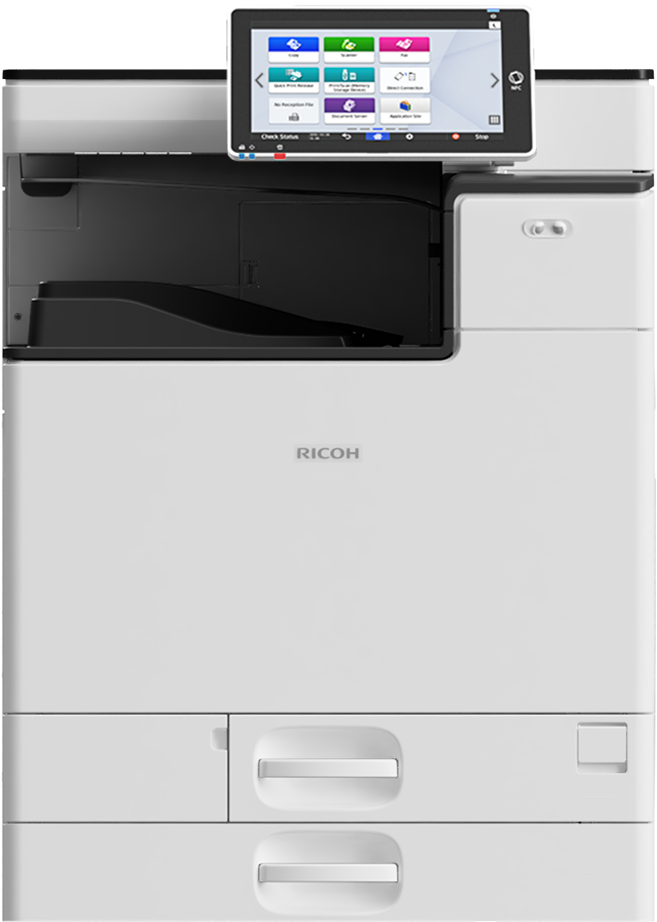

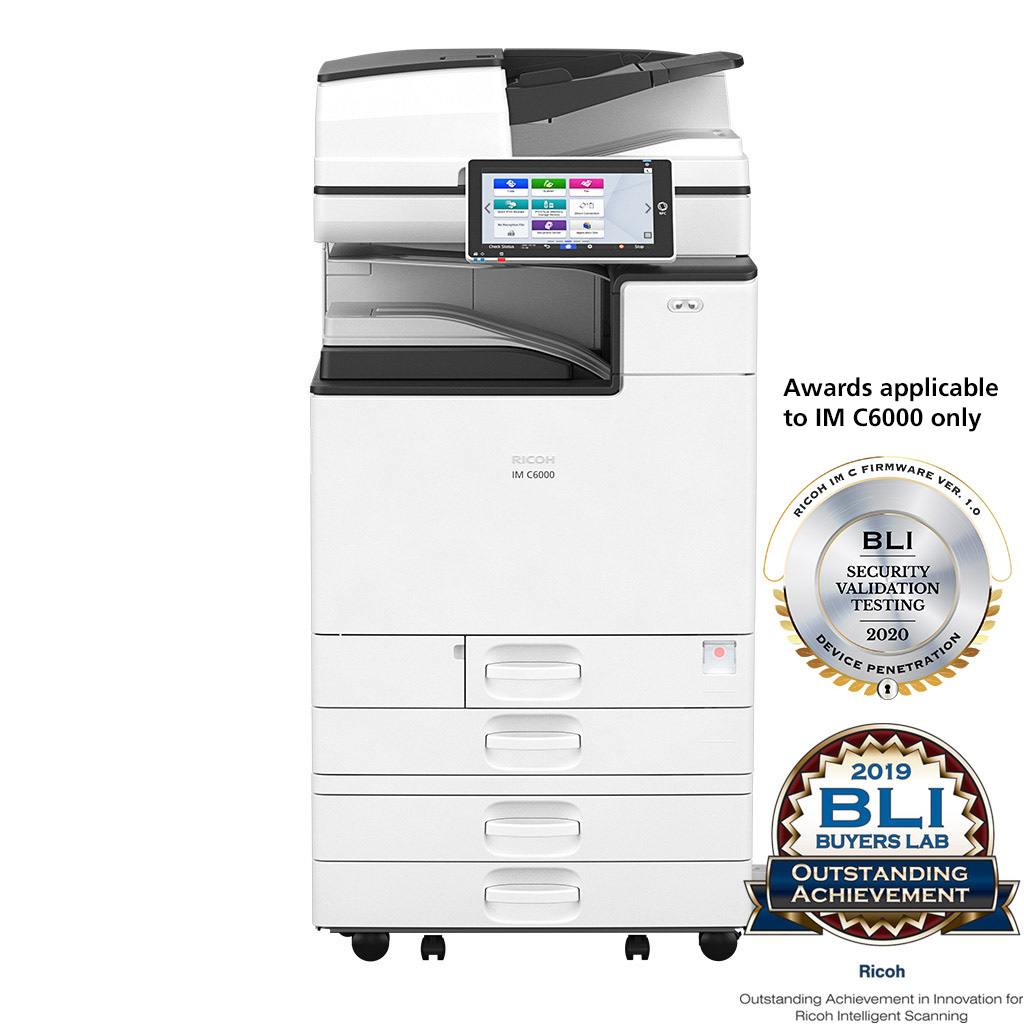

IM C6000

The IM C6000 enables our customers to work smarter and more effectively, providing technology that is scalable, secure, sustainable, and simple.

  • Integrated workflow scan processes
  • Easy access to the apps customers use most often
  • Add new functions when needed
  • Save costs by reduced energy consumption

The IM C6000 comes standard with an easy to use 10.1” Smart Operation Panel that has improved responsiveness and large new look icons. Settings can be configured to suit each individual user’s needs and with easier mobile connectivity, users can print or scan to the office network or cloud from their smart device, with built-in support for NFC, AirPrint or Mopria®

It also supports a variety of paper and finishing options to add a professional touch while meeting the printing demands of medium to large workgroups.

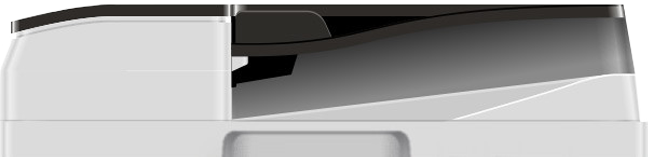

SPDF DF3120

Single-Pass Document Feeder. Feeds originals one page at a time into a scanner or copier without users having to manually replace each page. Captures both sides of the document simultaneously.

Stack capacity: 220 sheets, 44 sheets when Small Paper Feeding Unit option is installed.
Dimensions (W x D x H): 587 x 520 x 175 mm
Weight: 13.9 or less

Small Paper Feeding Unit Type M37

Optional unit for SPDF to scan small size paper. Used for scanning bank cheques or application slips.

Stack capacity: 44 sheets
Original size: 76–105 mm x 148–218 mm
Paper weight: 64–128 g/m2
Dimensions (W x D x H): 218 x 173 x 55 mm
Weight: 0.19 kg

Page Keeper Type M37
Supports SPDF as a double feed detection unit preventing more than one page from being scanned at a time.

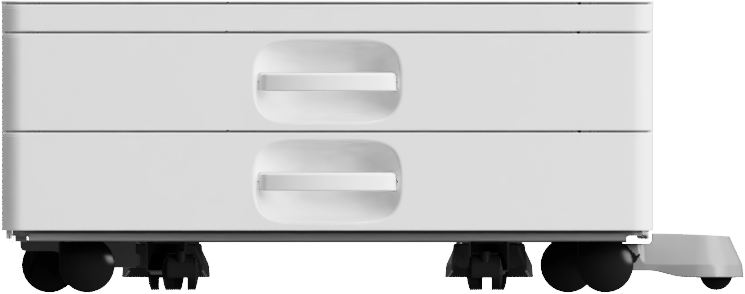

Paper Feed Unit PB3280
Optional 2-tray paper feed unit that increases the paper capacity of the device.

Capacity: 1,100 (2 x 550) sheets

Paper size: A6–SRA3, 12” x 18”; for SRA3 requires Image Extension Unit SRA3/12.6" Type M19
Paper weight: 60–300 g/m2
Dimensions (W x D x H): 587 x 685 x 247 mm
Weight: 23 kg
Power consumption: 21 W

Notes:
Cannot be installed with LCT PB3290,Paper Feed Unit PB3270,Caster Table Type M3

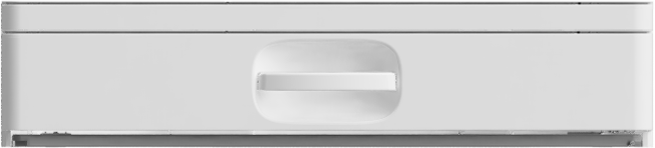

Paper Feed Unit PB3270

Optional 1-tray paper feed unit that increases the paper capacity of the device.

Capacity: 550 sheets
Paper size: A6–SRA3, 12" x 18"
Paper weight: 60–300 g/m2
Dimensions (W x D x H): 587 x 685 x 120 mm
Weight: 13 kg
Power consumption: 19 W

Notes:
By choosing this option the Caster Table Type M3 will be added to the configuration.
Cannot be installed with LCT PB3290,Paper Feed Unit PB3280,LCT RT3040,Booklet Finisher SR3270,Hybrid Finisher SR3260,Booklet Finisher SR3290,Finisher SR3280,Bridge Unit BU3090,Punch Unit PU3080 NA,Punch Unit PU3080 EU,Punch Unit PU3080 SC,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC
Caster Table Type M3

Provides a base with casters (wheels) to easily move the device on a floor standing configuration.

Dimensions (W x D x H): 668 x 723 x 76.2 mm—with Fall Prevention Device; 587 x 616 x 76.2 mm—without Fall Prevention Device
Weight: 8.23 kg or less

Note: Mainframe feet will be retracted when the caster table is attached, reducing the total configuration height by 5 mm.

Notes:
By choosing this option the Paper Feed Unit PB3270 will be added to the configuration.
Cannot be installed with LCT PB3290,Paper Feed Unit PB3280,LCT RT3040,Booklet Finisher SR3270,Hybrid Finisher SR3260,Booklet Finisher SR3290,Finisher SR3280,Bridge Unit BU3090,Punch Unit PU3080 NA,Punch Unit PU3080 EU,Punch Unit PU3080 SC,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC

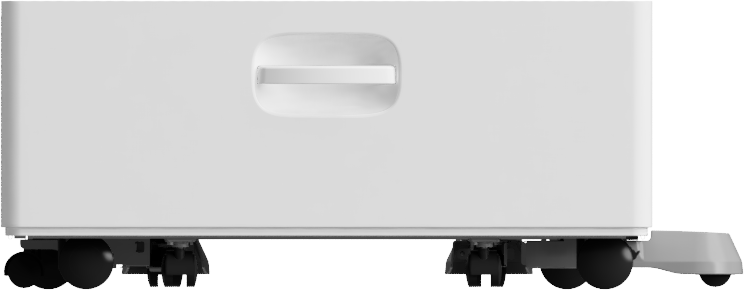

LCT PB3290

Optional tandem Large Capacity Tray significantly increasing the capacity of the device.

Capacity: 2,000 (2 x 1,000) sheets
Paper size: A4
Paper weight: 60–300 g/m2
Dimensions (W x D x H): 587 x 685 x 247 mm
Weight: 22 kg
Power consumption: 15 W

Notes:
Cannot be installed with Paper Feed Unit PB3280,Paper Feed Unit PB3270,Caster Table Type M3

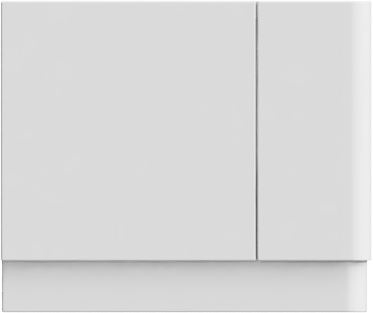

LCT RT3040

Optional side Large Capacity Tray significantly increasing the capacity of the device.

Capacity: 1,500 sheets
Paper size: B5–A4
Paper weight: 60–300 g/m2
Dimensions (W x D x H): 340 x 544.5 x 290 mm
Weight: 10.5 kg
Power consumption: 13 W

Notes:
Cannot be installed with Paper Feed Unit PB3270,Caster Table Type M3
One of the following must also be selected: Paper Feed Unit PB3280,LCT PB3290
Banner Paper Guide Tray Type M19

Extension arm to hold long sheets (banners) on the bypass tray to prevent them from sliding and falling on the floor.

Dimensions (W x D x H): 370 x 250 x 70 mm—tray folded, 370 x 250 x 250 mm—tray expanded
Weight: 942 g

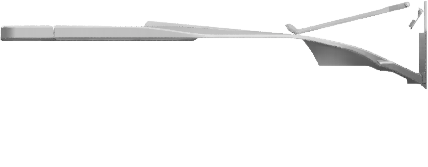

1-Bin Tray BN3130
Provides an additional output tray above the standard internal tray, optional bridge unit, optional internal shift tray, or optional internal finisher. Allows a user to separate print and fax output from copy.

Paper capacity: 125 sheets
Dimensions (W x D x H): 444 x 450 x 150 mm
Weight: 1.4 kg or less

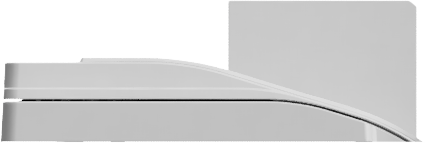

Internal Shift Tray SH3080

Enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job.

Capacity: 250 sheets (A4 or smaller), 125 sheets (B4 or larger)
Paper size: 320 mm x 600 mm or smaller; 320 mm x 1,260 mm—configurable in SP Mode
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 420 x 489 x 107 mm; 447 x 489 x 107 mm—with extension tray opened
Weight: 1.4 kg or less
Power consumption: 2 W

Notes:
Cannot be installed with Booklet Finisher SR3290,Finisher SR3280,Booklet Finisher SR3270,Hybrid Finisher SR3260,Bridge Unit BU3090,Side Tray Type M37,Internal Multi-Fold Unit FD3010,Punch Unit PU3080 NA,Punch Unit PU3080 EU,Punch Unit PU3080 SC,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC

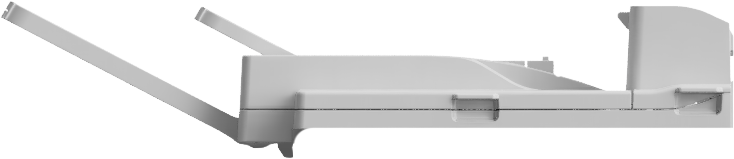

Side Tray Type M37

Provides an additional exit point if a finisher is not attached.

Output to internal tray: 250 sheets (A4) or 125 sheets (B4)
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 676 x 549 x 156 mm; 800 x 549 x 156 mm—with extended tray
Weight: 4 kg or less
Power consumption: 12 W

Notes:
Cannot be installed with Booklet Finisher SR3290,Finisher SR3280,Booklet Finisher SR3270,Hybrid Finisher SR3260,Bridge Unit BU3090,Internal Shift Tray SH3080,Internal Multi-Fold Unit FD3010,Punch Unit PU3080 NA,Punch Unit PU3080 EU,Punch Unit PU3080 SC,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC

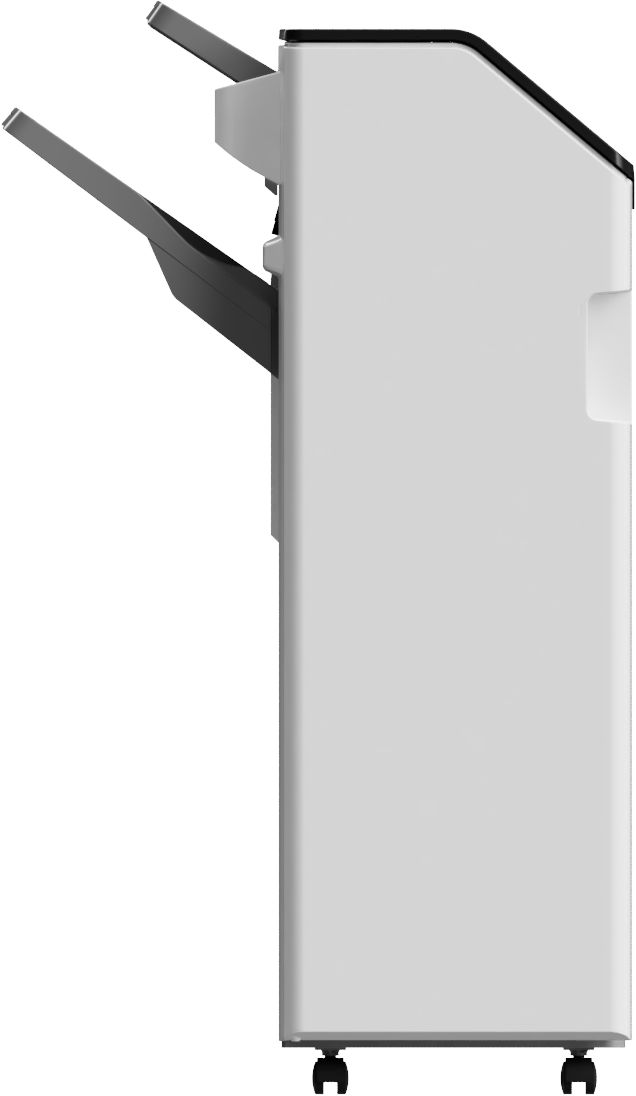

Hybrid Finisher SR3260

Offers both staple-free binding up to 5 sheets (10 pages) and conventional stapling to fasten together sheets with staples. Staple-free technology reduces need to restock staples, increases safety, and makes paper recycling easier.

Capacity: 1,000 sheets
Paper size: B6–A3, 12” x 18”, SRA3
Paper weight: 52–300 g/m2
Staple capacity:
2–50 sheets—A4 or smaller
2–30 sheets—B4 or larger
2–5 sheets—stapleless binding
Staple position: Top, bottom, 2 staples
Dimensions (W x D x H): 658 x 620 x 960 mm—with extended tray; 575 x 620 x 960 mm—without extended tray
Weight: 34 kg or less; 38 kg or less—with punch unit
Power consumption: 36 W—with punch unit

Notes:
Cannot be installed with Booklet Finisher SR3290,Finisher SR3280,Internal Shift Tray SH3080,Side Tray Type M37,Paper Feed Unit PB3270,Caster Table Type M3,Booklet Finisher SR3270,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC
One of the following must also be selected: Paper Feed Unit PB3280,LCT PB3290
One of the following must also be selected: Internal Multi-Fold Unit FD3010,Bridge Unit BU3090

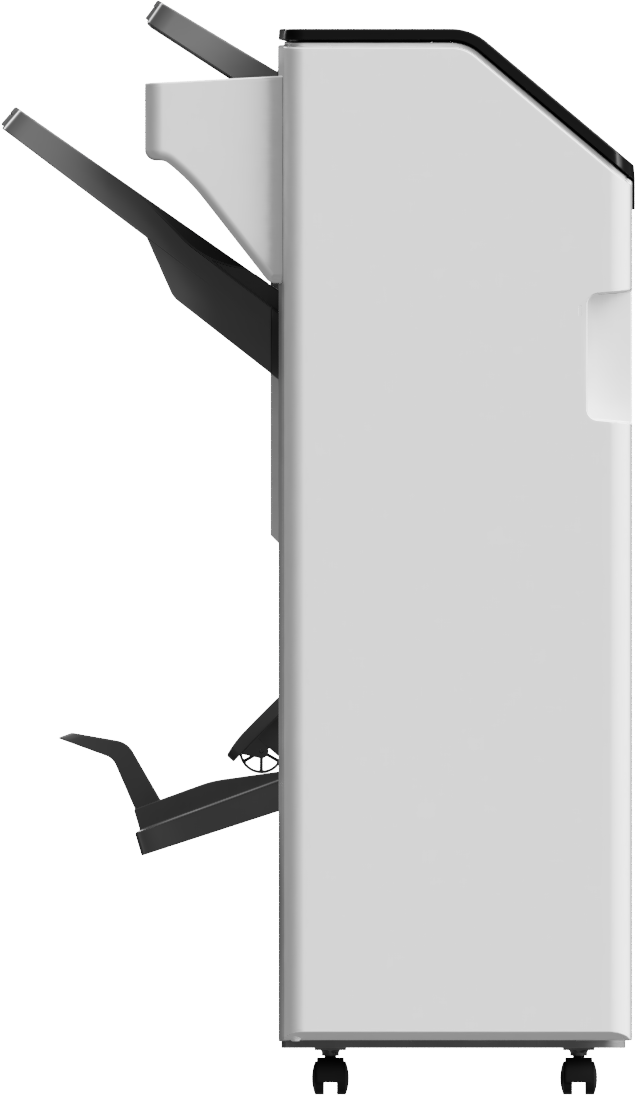

Booklet Finisher SR3270

Allows documents to be professionally finished as saddle-stitched booklets. Provides three destinations for output, and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas.

Capacity: 1,000 sheets
Paper size: B6–A3,  12” × 18”, SRA3, custom size 90 x 139.7–320 x 600 mm
Paper weight: 52–169 g/m2—proof tray; 52–300 g/m2—shift tray
Staple capacity: 50 sheets
Staple positions: top, bottom, 2 staple, booklet
Staple paper weight: 52-105 g/m2
Saddle stitch staple: 15 sheets (60-page booklet)
Optional punch unit PU3080 available
Dimensions (W x D x H): 575 x 620 x 960 mm—without extended tray; 646 x 620 x 960 mm—with extended tray
Weight: 43.5 kg or less; 47.5 kg or less—with punch unit
Power consumption: 36 W—with punch unit

Notes:
Cannot be installed with Booklet Finisher SR3290,Finisher SR3280,Hybrid Finisher SR3260,Internal Shift Tray SH3080,Side Tray Type M37,Paper Feed Unit PB3270,Caster Table Type M3,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC
One of the following must also be selected: Paper Feed Unit PB3280,LCT PB3290
One of the following must also be selected: Internal Multi-Fold Unit FD3010,Bridge Unit BU3090

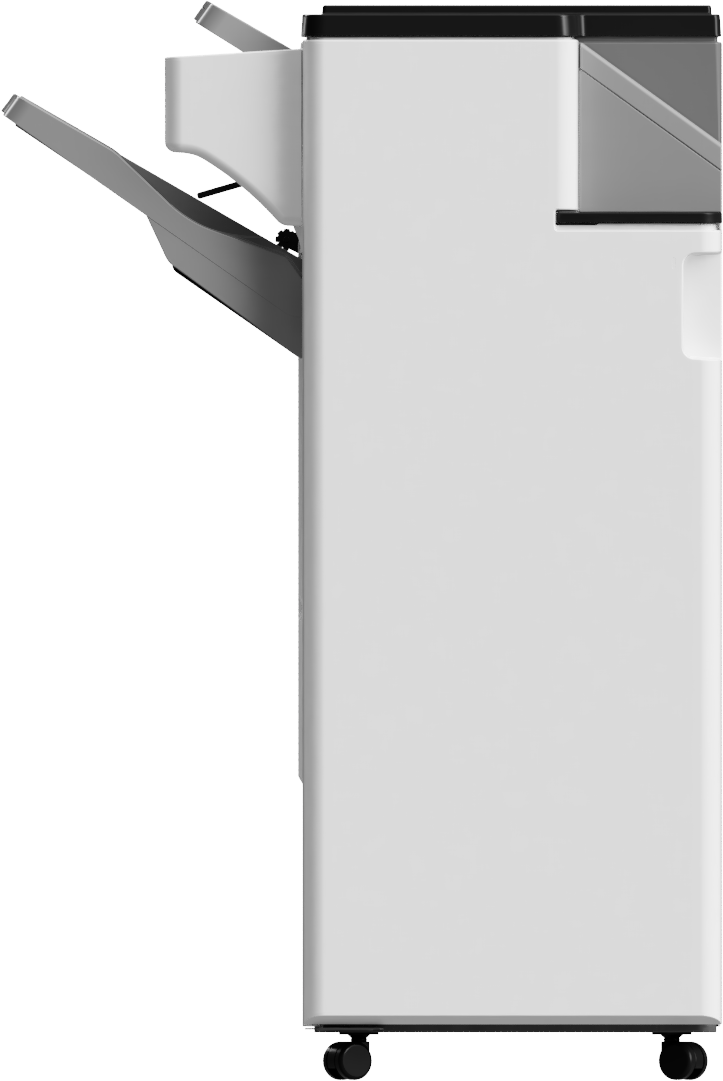

Finisher SR3280

Provides multi-position stapling and optional hole punching.

Capacity: 3,000 sheets
Paper size: B6–A3, 12” × 18”, SRA3, 13” x 19.2"
Paper weight: 52–300 g/m2
Staple capacity: 50 sheets
Staple positions: Top, bottom, 2 staples, top slant
Staple paper weight: 52–105 g/m2
Optional punch unit PU3090 available
Dimensions (W x D x H): 657 x 613 x 960 mm—without extended tray; 756 x 613 x 960 mm—with extended tray
Weight: 38 kg or less; 41 kg or less—with punch unit
Power consumption: 64 W

Notes:
Cannot be installed with Booklet Finisher SR3290,Booklet Finisher SR3270,Hybrid Finisher SR3260,Internal Shift Tray SH3080,Side Tray Type M37,Paper Feed Unit PB3270,Caster Table Type M3,Punch Unit PU3080 NA,Punch Unit PU3080 EU,Punch Unit PU3080 SC
One of the following must also be selected: Paper Feed Unit PB3280,LCT PB3290
One of the following must also be selected: Internal Multi-Fold Unit FD3010,Bridge Unit BU3090

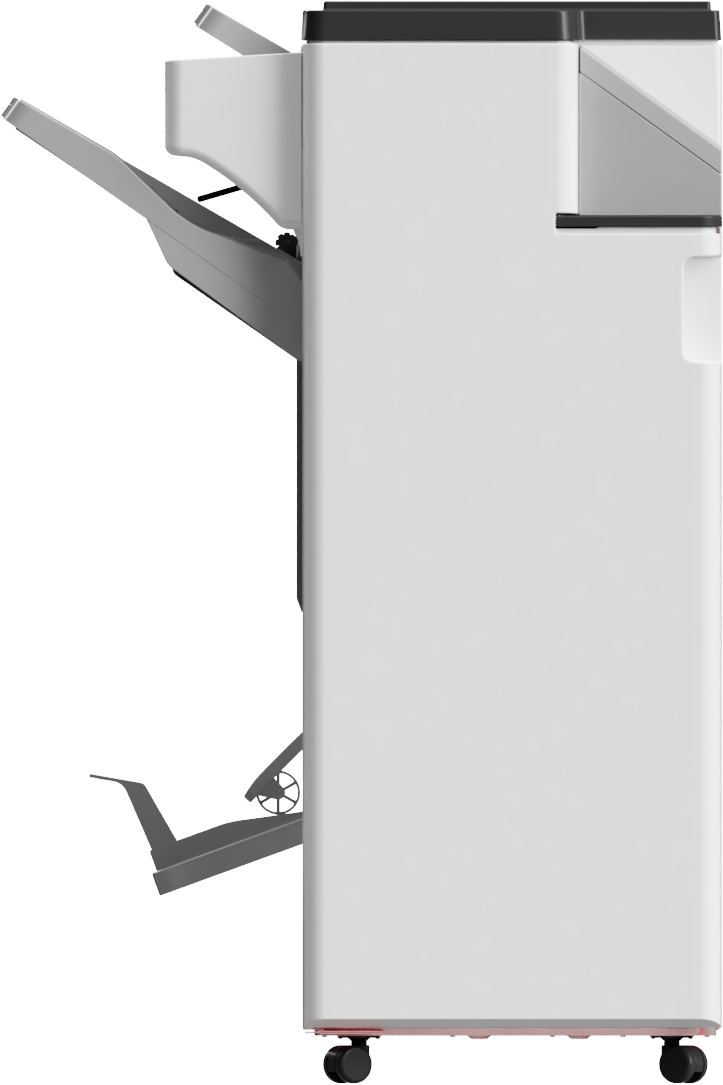

Booklet Finisher SR3290

Allows documents to be professionally finished as saddle-stitched booklets. Provides three destinations for output, and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas.

Capacity: 2,000 sheets
Paper size: B6–A3, 12” × 18”, 13” x 19.2”
Paper weight: 52–300 g/m2
Staple capacity: 50 sheets—normal staple; 20 sheets—saddle stitch staple
Staple positions: Top, bottom, 2 staples, top slant, booklet
Staple paper weight: 52–105 g/m2—normal staple; 64–105 g/m2—saddle stitch staple
Optional punch unit PU3090 available
Dimensions (W x D x H): 657 x 613 x 960 mm—without extended tray; 756 x 613 x 960 mm—with extended tray
Weight: 58 kg or less—without punch unit; 60 kg or less—with punch unit
Power consumption: 64 W or less

Notes:
Cannot be installed with Finisher SR3280,Booklet Finisher SR3270,Hybrid Finisher SR3260,Internal Shift Tray SH3080,Side Tray Type M37,Paper Feed Unit PB3270,Caster Table Type M3,Punch Unit PU3080 NA,Punch Unit PU3080 EU,Punch Unit PU3080 SC
One of the following must also be selected: Paper Feed Unit PB3280,LCT PB3290
One of the following must also be selected: Internal Multi-Fold Unit FD3010,Bridge Unit BU3090
Punch Unit PU3080 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3080 EU,Punch Unit PU3080 SC,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Paper Feed Unit PB3270,Caster Table Type M3,Booklet Finisher SR3290,Finisher SR3280,Internal Shift Tray SH3080,Side Tray Type M37
One of the following must also be selected: Hybrid Finisher SR3260,Booklet Finisher SR3270
Punch Unit PU3080 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3080 NA,Punch Unit PU3080 SC,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Paper Feed Unit PB3270,Caster Table Type M3,Booklet Finisher SR3290,Finisher SR3280,Internal Shift Tray SH3080,Side Tray Type M37
One of the following must also be selected: Hybrid Finisher SR3260,Booklet Finisher SR3270
Punch Unit PU3080 SC
Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3080 NA,Punch Unit PU3080 EU,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Paper Feed Unit PB3270,Caster Table Type M3,Booklet Finisher SR3290,Finisher SR3280,Internal Shift Tray SH3080,Side Tray Type M37
One of the following must also be selected: Hybrid Finisher SR3260,Booklet Finisher SR3270
Punch Unit PU3090 NA

Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.

Paper size:
2-hole punch
A5 SEF–A3 SEF, HLT–DLT SEF
A5–A4 LEF, HLT LEF, LT LEF
Note: A4 SEF and A5 LEF are not supported with 2 hole punch.
3-hole punch
B4 SEF, A3 SEF, DLT SEF
A4 LEF, B5 LEF, LT LEF
Paper weight: 52–256 g/m2
Weight: 2 kg

Notes:
Cannot be installed with Punch Unit PU3080 NA,Punch Unit PU3080 EU,Punch Unit PU3080 SC,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Paper Feed Unit PB3270,Caster Table Type M3,Booklet Finisher SR3270,Hybrid Finisher SR3260,Internal Shift Tray SH3080,Side Tray Type M37
One of the following must also be selected: Booklet Finisher SR3290,Finisher SR3280
Punch Unit PU3090 EU

Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.

Paper size:
2-hole punch
A5 SEF–A3 SEF, HLT–DLT SEF
A5–A4 LEF, HLT LEF, LT LEF
Note: A4 SEF and A5 LEF are not supported with 2 hole punch.
4-hole punch

B4 SEF, A3 SEF, DLT SEF
A4 LEF, B5 LEF, LT LEF
Paper weight: 52–256 g/m2
Weight: 2 kg

Notes:
Cannot be installed with Punch Unit PU3080 NA,Punch Unit PU3080 EU,Punch Unit PU3080 SC,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Paper Feed Unit PB3270,Caster Table Type M3,Booklet Finisher SR3270,Hybrid Finisher SR3260,Internal Shift Tray SH3080,Side Tray Type M37
One of the following must also be selected: Booklet Finisher SR3290,Finisher SR3280
Punch Unit PU3090 SC

Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.

Paper size:
A5 SEF–A3 SEF, HLT–DLT SEF
A5–A4 LEF, HLT LEF, LT LEF
Paper weight: 52–256 g/m2
Weight: 2 kg

Notes:
Cannot be installed with Punch Unit PU3080 NA,Punch Unit PU3080 EU,Punch Unit PU3080 SC,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Paper Feed Unit PB3270,Caster Table Type M3,Booklet Finisher SR3270,Hybrid Finisher SR3260,Internal Shift Tray SH3080,Side Tray Type M37
One of the following must also be selected: Booklet Finisher SR3290,Finisher SR3280

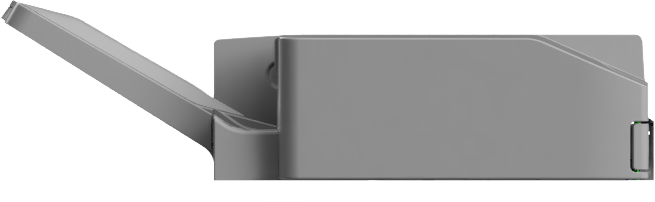

Internal Multi-Fold Unit FD3010

Offers four types of single-sheet folding, including Z-fold, half-fold, outer tri-fold, and inner tri-fold within the original footprint as it is installed in the exit tray.

Stack capacity: 20 sheets—with folding; 100 sheets—without folding
Fold types: Z-fold, half-fold, inner tri-fold, outer tri-fold
Paper size: A6–A3, 12.6" x 17.7", 12" x 18"
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 612 x 555 x 184 mm—without extension tray; 724 x 555 x 184 mm—with extension tray
Weight: 15 kg or less
Power consumption: 40 W or less

Notes:
Cannot be installed with Bridge Unit BU3090,Internal Shift Tray SH3080,Side Tray Type M37

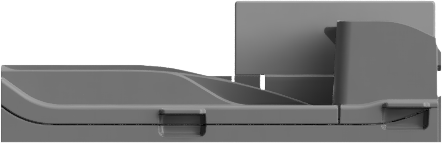

Bridge Unit BU3090
Required when a mainframe is configured with an external finisher. Transports pages from the standard exit area into a finisher for inline stapling or hole punching.
Notes:
Cannot be installed with Internal Shift Tray SH3080,Side Tray Type M37,Internal Multi-Fold Unit FD3010,Paper Feed Unit PB3270,Caster Table Type M3
One of the following must also be selected: Hybrid Finisher SR3260,Booklet Finisher SR3270,Booklet Finisher SR3290,Finisher SR3280
PostScript 3 Unit Type M37
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
Notes:
Cannot be installed with Colour Controller E-25C
XPS Direct Print Option Type M37
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
Camera Direct Print Card Type M37
Provides software for optional PictBridge functionality that allows users to plug in a PictBridge-enabled digital camera directly to a printer or MFP.
Notes:
Cannot be installed with Colour Controller E-25C
IPDS unit Type M37
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
Notes:
Cannot be installed with Colour Controller E-25C
Colour Controller E-25C
An optional colour controller that improves the quality of printed documents, makes employees more productive, reduces internal printing costs, and saves outsourced printing expenses.
Notes:
Cannot be installed with PostScript 3 Unit Type M37,Camera Direct Print Card Type M37,IPDS unit Type M37,IEEE 1284 Interface Board Type M19,Optional Counter Interface Unit Type M12,IEEE 802.11a/g/n Interface Unit Type M19,Key Counter Bracket Type M3,File Format Converter Type M19,Device Server Option Type M37
OCR Unit Type M13
Scans and creates editable text files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
Image Extension Unit SRA3/12.6" Type M19

Allows users to print crop marks for proofing SRA3/12.6" documents.

File Format Converter Type M19
Allows users to save copy and print jobs stored on the document server to a computer.
Notes:
Cannot be installed with Colour Controller E-25C,IEEE 1284 Interface Board Type M19,IEEE 802.11a/g/n Interface Unit Type M19,Device Server Option Type M37
ADF Accessibility Handle Type C
Assists seated users or users with arm injuries to open and close an automatic document feeder.
Notes:
One of the following must also be selected: SPDF DF3120
Fax Option Type M37

Enables fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320-page memory.

Includes standard Internet Fax (T.37), LAN fax, IP-Fax (T.38), Fax forwarding to email, and Paperless fax function.

G3 Fax Type M37
Additional G3 line. Up to two units can be installed.
Notes:
By choosing this option the Fax Option Type M37 will be added to the configuration.
Fax Connection Unit Type M37
Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax. Supports max 6 sub-connections.
Notes:
By choosing this option the Fax Option Type M37 will be added to the configuration.
Fax Memory Unit Type M19
64 MB additional memory that increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.
Notes:
By choosing this option the Fax Option Type M37 will be added to the configuration.
IEEE 1284 Interface Board Type M19
Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.
Notes:
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,Colour Controller E-25C,File Format Converter Type M19,Device Server Option Type M37
Optional Counter Interface Unit Type M12

Used with external third party counting devices for accounting and charge-back purposes.

Notes:
Cannot be installed with Colour Controller E-25C
Key Counter Bracket Type M3
4-pin interface for mounting an external key counter to an MFP.
Notes:
Cannot be installed with Colour Controller E-25C
IEEE 802.11a/g/n Interface Unit Type M19
Enables WiFi connectivity and wireless printing.
Notes:
Cannot be installed with File Format Converter Type M19,Device Server Option Type M37,Colour Controller E-25C,IEEE 1284 Interface Board Type M19
Smart Card Reader Built-in Unit Type M37
Notes:
Cannot be installed with NFC Card Reader Type M37,External Keyboard Bracket Type M19
External Keyboard Bracket Type M19
For attaching an external keyboard to the device.
Notes:
Cannot be installed with Smart Card Reader Built-in Unit Type M37
Device Server Option Type M37
An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
Notes:
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,IEEE 1284 Interface Board Type M19,Colour Controller E-25C,File Format Converter Type M19
NFC Card Reader Type M37

Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.

Notes:
Cannot be installed with Smart Card Reader Built-in Unit Type M37
Memory Unit Type M37
Replaces the standard 2 GB RAM for a maximum of 4 GB RAM.
Unicode Font Package for SAP 1 Licence
Supports multilingual data without restrictions.
Unicode Font Package for SAP 10 Licence
Supports multilingual data without restrictions.

Standard inclusions

  • 10.1" Smart Operation Panel
  • Mobile printing
  • 320 GB HDD
  • PostScript3 emulation
  • 220-sheet SPDF
  • 2 x 550-sheet input tray + 100-sheet bypass tray

Current configuration

IM C6000
587 mm x 685 mm x 788 mm (W x D x H)
87.5 kg
Selected Options:

    {"configuratorid":"97e1e99e-9382-4211-b5c0-f8fe6452b09a","productid":"4d3d4c5f-59bb-419c-baa5-f86c7f8b2157","edpcode":"418326","productdisplayname":"IM C6000","width":587.0,"height":788.0,"depth":685.0,"weight":87.5,"mainframe_imageurl":"/-/media/all-regional/images/product-images/office-solutions/printers-and-copiers/mfp-colour/imc2000/configurator/mainframe.png?dmc=0&hash=26CCAF19F7C69AB45EF8EA19AB36C8376B6CBA72","configurator_hash":"79394066-5f51-4702-8615-a8b3e25f7996","options":{"418366":{"edpcode":"418366","displayname":"SPDF DF3120","extras":[],"width":587.0,"height":175.0,"depth":520.0,"weight":13.9,"show_image":true,"select_rules":[],"hide_until_required":false},"418367":{"edpcode":"418367","displayname":"Small Paper Feeding Unit Type M37","extras":[],"width":218.0,"height":55.0,"depth":173.0,"weight":0.19,"show_image":false,"select_rules":[],"hide_until_required":false},"418368":{"edpcode":"418368","displayname":"Page Keeper Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[],"hide_until_required":false},"418349":{"edpcode":"418349","displayname":"Paper Feed Unit PB3280","extras":[],"width":587.0,"height":247.0,"depth":685.0,"weight":23.0,"show_image":true,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418349","excludes":["418412","418355","416737"]}],"hide_until_required":false},"418355":{"edpcode":"418355","displayname":"Paper Feed Unit PB3270","extras":[],"width":587.0,"height":120.0,"depth":685.0,"weight":13.0,"show_image":true,"select_rules":[{"rule":"RequireSelect","selected_option":"418355","requires":["416737"]},{"rule":"ExcludeSelect","selected_option":"418355","excludes":["418412","418349","418411","418335","418337","418330","418385","418345","418381","418382","418383","418332","418333","418334"]}],"hide_until_required":false},"416737":{"edpcode":"416737","displayname":"Caster Table Type M3","extras":[],"width":668.0,"height":76.2,"depth":723.0,"weight":8.23,"show_image":true,"select_rules":[{"rule":"RequireSelect","selected_option":"416737","requires":["418355"]},{"rule":"ExcludeSelect","selected_option":"416737","excludes":["418412","418349","418411","418335","418337","418330","418385","418345","418381","418382","418383","418332","418333","418334"]}],"hide_until_required":false},"418412":{"edpcode":"418412","displayname":"LCT PB3290","extras":[],"width":587.0,"height":247.0,"depth":685.0,"weight":22.0,"show_image":true,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418412","excludes":["418349","418355","416737"]}],"hide_until_required":false},"418411":{"edpcode":"418411","displayname":"LCT RT3040","extras":[],"width":340.0,"height":290.0,"depth":544.5,"weight":10.5,"show_image":true,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418411","excludes":["418355","416737"]},{"rule":"RequireOneSelect","selected_option":"418411","require_ones":["418349","418412"]}],"hide_until_required":false},"417485":{"edpcode":"417485","displayname":"Banner Paper Guide Tray Type M19","extras":[],"width":370.0,"height":250.0,"depth":250.0,"weight":0.942,"show_image":true,"select_rules":[],"hide_until_required":false},"418376":{"edpcode":"418376","displayname":"1-Bin Tray BN3130","extras":[],"width":444.0,"height":150.0,"depth":450.0,"weight":1.4,"show_image":true,"select_rules":[],"hide_until_required":false},"418343":{"edpcode":"418343","displayname":"Internal Shift Tray SH3080","extras":[],"width":420.0,"height":107.0,"depth":489.0,"weight":1.4,"show_image":true,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418343","excludes":["418330","418385","418335","418337","418345","418347","418339","418381","418382","418383","418332","418333","418334"]}],"hide_until_required":false},"418347":{"edpcode":"418347","displayname":"Side Tray Type M37","extras":[],"width":676.0,"height":156.0,"depth":549.0,"weight":4.0,"show_image":true,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418347","excludes":["418330","418385","418335","418337","418345","418343","418339","418381","418382","418383","418332","418333","418334"]}],"hide_until_required":false},"418337":{"edpcode":"418337","displayname":"Hybrid Finisher SR3260","extras":[],"width":658.0,"height":960.0,"depth":620.0,"weight":34.0,"show_image":true,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418337","excludes":["418330","418385","418343","418347","418355","416737","418335","418332","418333","418334"]},{"rule":"RequireOneSelect","selected_option":"418337","require_ones":["418349","418412"]},{"rule":"RequireOneSelect","selected_option":"418337","require_ones":["418339","418345"]}],"hide_until_required":false},"418335":{"edpcode":"418335","displayname":"Booklet Finisher SR3270","extras":[],"width":575.0,"height":960.0,"depth":620.0,"weight":43.5,"show_image":true,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418335","excludes":["418330","418385","418337","418343","418347","418355","416737","418332","418333","418334"]},{"rule":"RequireOneSelect","selected_option":"418335","require_ones":["418349","418412"]},{"rule":"RequireOneSelect","selected_option":"418335","require_ones":["418339","418345"]}],"hide_until_required":false},"418385":{"edpcode":"418385","displayname":"Finisher SR3280","extras":[],"width":657.0,"height":960.0,"depth":613.0,"weight":38.0,"show_image":true,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418385","excludes":["418330","418335","418337","418343","418347","418355","416737","418381","418382","418383"]},{"rule":"RequireOneSelect","selected_option":"418385","require_ones":["418349","418412"]},{"rule":"RequireOneSelect","selected_option":"418385","require_ones":["418339","418345"]}],"hide_until_required":false},"418330":{"edpcode":"418330","displayname":"Booklet Finisher SR3290","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":true,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418330","excludes":["418385","418335","418337","418343","418347","418355","416737","418381","418382","418383"]},{"rule":"RequireOneSelect","selected_option":"418330","require_ones":["418349","418412"]},{"rule":"RequireOneSelect","selected_option":"418330","require_ones":["418339","418345"]}],"hide_until_required":false},"418381":{"edpcode":"418381","displayname":"Punch Unit PU3080 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":3.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418381","excludes":["418382","418383","418332","418333","418334","418355","416737","418330","418385","418343","418347"]},{"rule":"RequireOneSelect","selected_option":"418381","require_ones":["418337","418335"]}],"hide_until_required":false},"418382":{"edpcode":"418382","displayname":"Punch Unit PU3080 EU","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":3.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418382","excludes":["418381","418383","418332","418333","418334","418355","416737","418330","418385","418343","418347"]},{"rule":"RequireOneSelect","selected_option":"418382","require_ones":["418337","418335"]}],"hide_until_required":false},"418383":{"edpcode":"418383","displayname":"Punch Unit PU3080 SC","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":3.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418383","excludes":["418381","418382","418332","418333","418334","418355","416737","418330","418385","418343","418347"]},{"rule":"RequireOneSelect","selected_option":"418383","require_ones":["418337","418335"]}],"hide_until_required":false},"418332":{"edpcode":"418332","displayname":"Punch Unit PU3090 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":2.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418332","excludes":["418381","418382","418383","418333","418334","418355","416737","418335","418337","418343","418347"]},{"rule":"RequireOneSelect","selected_option":"418332","require_ones":["418330","418385"]}],"hide_until_required":false},"418333":{"edpcode":"418333","displayname":"Punch Unit PU3090 EU","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":2.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418333","excludes":["418381","418382","418383","418332","418334","418355","416737","418335","418337","418343","418347"]},{"rule":"RequireOneSelect","selected_option":"418333","require_ones":["418330","418385"]}],"hide_until_required":false},"418334":{"edpcode":"418334","displayname":"Punch Unit PU3090 SC","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":2.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418334","excludes":["418381","418382","418383","418332","418333","418355","416737","418335","418337","418343","418347"]},{"rule":"RequireOneSelect","selected_option":"418334","require_ones":["418330","418385"]}],"hide_until_required":false},"418339":{"edpcode":"418339","displayname":"Internal Multi-Fold Unit FD3010","extras":[],"width":612.0,"height":184.0,"depth":555.0,"weight":15.0,"show_image":true,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418339","excludes":["418345","418343","418347"]}],"hide_until_required":false},"418345":{"edpcode":"418345","displayname":"Bridge Unit BU3090","extras":[],"width":412.0,"height":143.0,"depth":466.0,"weight":3.4,"show_image":true,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418345","excludes":["418343","418347","418339","418355","416737"]},{"rule":"RequireOneSelect","selected_option":"418345","require_ones":["418337","418335","418330","418385"]}],"hide_until_required":false},"418408":{"edpcode":"418408","displayname":"PostScript 3 Unit Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418408","excludes":["418434"]}],"hide_until_required":false},"418405":{"edpcode":"418405","displayname":"XPS Direct Print Option Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[],"hide_until_required":false},"418409":{"edpcode":"418409","displayname":"Camera Direct Print Card Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418409","excludes":["418434"]}],"hide_until_required":false},"418535":{"edpcode":"418535","displayname":"IPDS unit Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418535","excludes":["418434"]}],"hide_until_required":false},"418434":{"edpcode":"418434","displayname":"Colour Controller E-25C","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418434","excludes":["418408","418409","418535","417596","417111","417493","416869","417508","418399"]}],"hide_until_required":false},"417430":{"edpcode":"417430","displayname":"OCR Unit Type M13","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[],"hide_until_required":false},"417497":{"edpcode":"417497","displayname":"Image Extension Unit SRA3/12.6\" Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[],"hide_until_required":false},"417508":{"edpcode":"417508","displayname":"File Format Converter Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"417508","excludes":["418434","417596","417493","418399"]}],"hide_until_required":false},"416213":{"edpcode":"416213","displayname":"ADF Accessibility Handle Type C","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"RequireOneSelect","selected_option":"416213","require_ones":["418366"]}],"hide_until_required":false},"418394":{"edpcode":"418394","displayname":"Fax Option Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[],"hide_until_required":false},"418531":{"edpcode":"418531","displayname":"G3 Fax Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"RequireSelect","selected_option":"418531","requires":["418394"]}],"hide_until_required":false},"418402":{"edpcode":"418402","displayname":"Fax Connection Unit Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"RequireSelect","selected_option":"418402","requires":["418394"]}],"hide_until_required":false},"417518":{"edpcode":"417518","displayname":"Fax Memory Unit Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"RequireSelect","selected_option":"417518","requires":["418394"]}],"hide_until_required":false},"417596":{"edpcode":"417596","displayname":"IEEE 1284 Interface Board Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"417596","excludes":["417493","418434","417508","418399"]}],"hide_until_required":false},"417111":{"edpcode":"417111","displayname":"Optional Counter Interface Unit Type M12","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"417111","excludes":["418434"]}],"hide_until_required":false},"416869":{"edpcode":"416869","displayname":"Key Counter Bracket Type M3","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"416869","excludes":["418434"]}],"hide_until_required":false},"417493":{"edpcode":"417493","displayname":"IEEE 802.11a/g/n Interface Unit Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"417493","excludes":["417508","418399","418434","417596"]}],"hide_until_required":false},"418422":{"edpcode":"418422","displayname":"Smart Card Reader Built-in Unit Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418422","excludes":["418421","417578"]}],"hide_until_required":false},"417578":{"edpcode":"417578","displayname":"External Keyboard Bracket Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"417578","excludes":["418422"]}],"hide_until_required":false},"418399":{"edpcode":"418399","displayname":"Device Server Option Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418399","excludes":["417493","417596","418434","417508"]}],"hide_until_required":false},"418421":{"edpcode":"418421","displayname":"NFC Card Reader Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[{"rule":"ExcludeSelect","selected_option":"418421","excludes":["418422"]}],"hide_until_required":false},"418397":{"edpcode":"418397","displayname":"Memory Unit Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[],"hide_until_required":false},"413009":{"edpcode":"413009","displayname":"Unicode Font Package for SAP 1 Licence","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[],"hide_until_required":false},"413010":{"edpcode":"413010","displayname":"Unicode Font Package for SAP 10 Licence","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"select_rules":[],"hide_until_required":false}},"affect_group":[["418366","416213"],["418367"],["418368"],["418349","418412","418355","416737","418411","418335","418337","418330","418385","418343","418345","418347","418339","418381","418382","418383","418332","418333","418334"],["417485"],["418376"],["418408","418434","418409","418535","417596","417111","417493","416869","417508","418399"],["418405"],["417430"],["417497"],["418394","418531","418402","417518"],["418422","418421","417578"],["418397"],["413009"],["413010"]],"preselect_configs":{"418366":1},"min_config":{"must_select_at_least_one_option":false,"requires":["418366"],"requireones":[]}}
